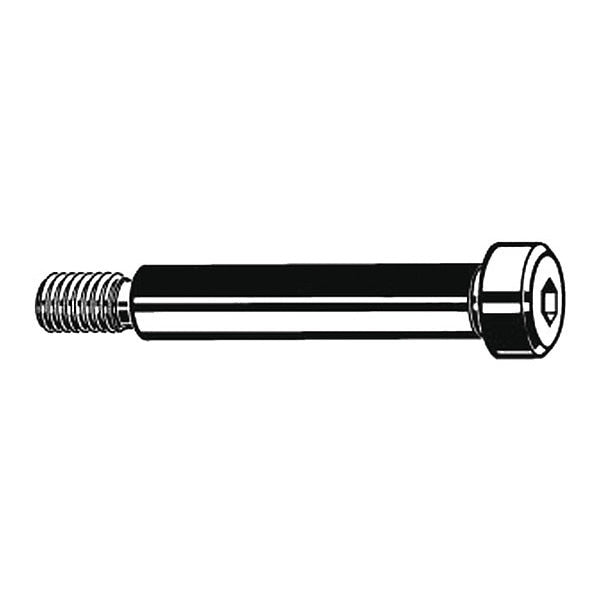

Precision Shoulder Screw, 3/8"-16 Thr Sz, 5/8 in Thr Lg, 3/4 in Shoulder Lg, 18-8 Stainless Steel

CONTRACTOR SELECT — Shoulder Bolts — Precision Shoulder Screw, 3/8"-16 Thr Sz, 5/8 in Thr Lg, 3/4 in Shoulder Lg, 18-8 Stainless Steel

A practical Shoulder Bolts by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Finish: Plain
• Item: Precision Shoulder Screw
• Class: 3A
• Thread Size: 3/8"-16
• Manufacturer Part Number: U51044.050.0075
• UPC: -

Product information

• UPC: -
• Country of Origin: Multiple
• Manufacturer Part Number: U51044.050.0075

Dimensions

• Head Diameter: 3/4 in
• Head Height: 5/16 in
• Thread Length: 5/8 in
• Screw Head Dia.: 0.729 to 0.750
• Shoulder Dia.: 1/2 in
• Screw Head Height: 5/16 in
• Shoulder Length Tolerance: +/-0.005 in
• Shoulder Diameter Tolerance: -0.002 in to -0.004 in
• Maximum Head Height: 0.312 in
• Minimum Thread Length: 5/8 in
• Minimum Head Height: 0.302 in
• Thread Size: 3/8"-16
• Shoulder Diameter: 1/2 in
• Shoulder Length: 3/4 in
• Drive Size: 1/4 in

Details

• Shear Strength: 84,000 psi
• Thread Locking: No
• Maximum Temperature: 150 Degrees F
• Thread Type: Coarse
• Finish: Plain
• Item: Precision Shoulder Screw
• Class: 3A
• Rockwell Hardness: B65
• Head Style: Knurled
• Type: Precision
• Min. Tensile Strength (PSI): 90,000 psi
• Meets/Exceeds: ASME B18.3
• Thread Fit: 3A
• Dimensional Standards: ASME B18.3
• Precision Screw: Yes
• Thread Direction: Right Hand
• Material Grade/Class: 18-8
• Heat Treatment: No Heat Treatment
• Countersink Angle: 140 Degrees
• Tensile Strength: 80,000 psi
• Head Texture: Knurled
• Pack Size: Small Pack

This Shoulder Bolts is chosen for predictable fit and professional handling.

Recommended for facility operations and routine servicing and a practical option for maintenance teams and procurement.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
