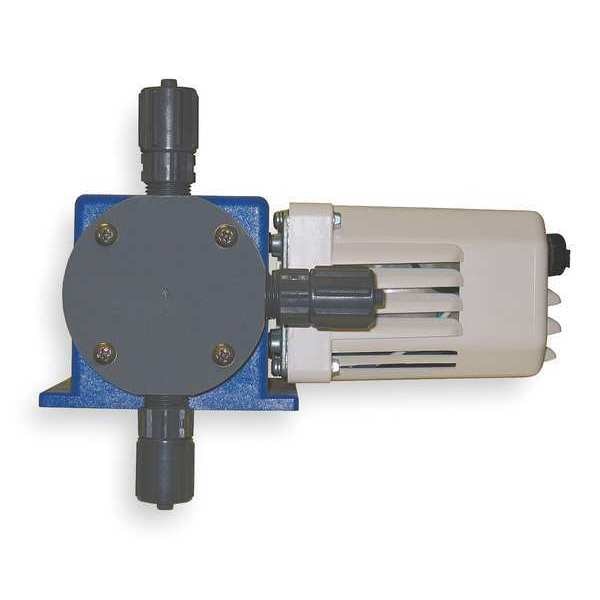

Prime Performance Pump, 100 psi, 60 Hz

PULSATRON — Chemical Metering Pumps — Prime Performance Pump, 100 psi, 60 Hz

This Chemical Metering Pumps from PULSATRON supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Includes: Foot valve, Injection valve, 4' PVC suction tubing, 8' PE discharge tubing
• Diaphragm Material: CSPE, PTFE
• Number of Feeds: 1
• Overall Length: 7.3 in
• Manufacturer Part Number: X030-XC-BAA9XXX
• UPC: -

Product information

• Manufacturer Part Number: X030-XC-BAA9XXX
• UPC: -
• Country of Origin: United States

Dimensions

• Overall Length: 7.3 in
• Overall Height: 3.5 in
• Discharge Connection Size: 1/2 in
• Intake Connection Size: 1/2 in
• Overall Width: 8.8 in
• Cord Length: 6 ft

Details

• Discharge Connection Type: Tube
• Ambient Temperature (Maximum): 125 Degrees F
• Control Programs: Manual Control
• Pump Drive Type: Electric Motor
• Frequency: 60 Hz
• Duty Cycle: Continuous
• Chemical Compatibility: Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Water
• Stroke Rate (Maximum): 51 stroke/min
• Operating Pressure (Maximum): 100 psi
• Degassing Valve Included: Yes
• Flow Rate (Minimum): 3 gpd
• Seal Material: CSPE
• Fitting Material: PVC
• Flow Rate (Maximum): 30 gpd
• Check Ball Material: Ceramic
• Horsepower (Maximum): 1/60 hp
• Nameplate Voltage: 115/230V AC
• Diaphragm Material: CSPE, PTFE
• Includes: Foot valve, Injection valve, 4' PVC suction tubing, 8' PE discharge tubing
• Number of Feeds: 1
• Head Material: PVC
• Reproducibility: +/-3.0%
• Turn Down Ratio: 10:1
• Phase: Single
• Standards: CE, Conforms to ANSI/NSF 50 STD., ETL 9700150
• Housing Material: ABS
• Item: Prime Performance Pump
• Priming: Self-Priming
• Viscosity (Maximum): 20 cps
• Media Temperature (Maximum): 104 Degrees F
• Intake Connection Type: Tube
• Motor Speed (Maximum): 51 RPM

This Chemical Metering Pumps is selected for dependable day-to-day use.

Recommended for field service tasks and on-site replacement and a practical option for maintenance teams and procurement.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
