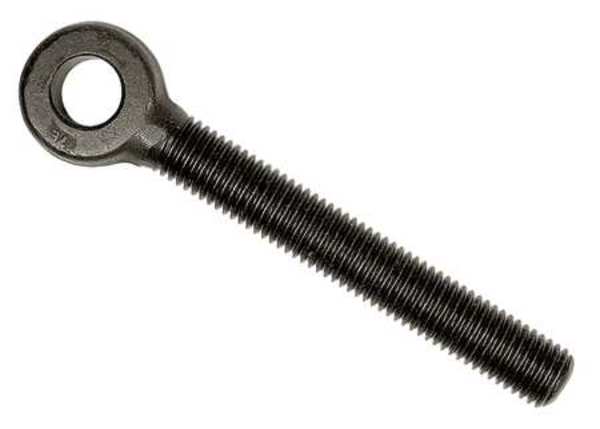

Rod End, Alloy Steel, 1/4"-20 Thrd Sz, 3-1/2 in Overall Lg

KEN FORGING — Rod Ends — Rod End, Alloy Steel, 1/4"-20 Thrd Sz, 3-1/2 in Overall Lg

This Rod Ends from KEN FORGING supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Material: Alloy Steel
• Finish: Black Oxide
• System of Measurement: Inch
• Length: 3-1/2 in
• Manufacturer Part Number: 1A-B7MACH
• UPC: -

Product information

• UPC: -
• Country of Origin: United States
• Manufacturer Part Number: 1A-B7MACH

Dimensions

• Dia./Thread Size: 1/4"-20
• Boss Diameter: 39/64 in
• Shank Dia.: 1/4 in
• Boss Thickness: 1/4 in
• Shank Diameter: 1/4 in
• Overall Length: 3 1/2 in
• Screw Size: 1/4 in
• Eye Inside Diameter: 1/4 in
• Eye Thickness: 1/4 in
• Eye Outside Diameter: 39/64 in
• Hole Center-to-End Length: 3 1/2 in
• Thread Length: 3 1/2 in
• Thread Size: 1/4"-20
• Length: 3-1/2 in

Details

• Material Grade/Class: 4140
• Finish: Black Oxide
• Thread Style: Fully Threaded
• Shank Type: Externally Threaded
• Hole I.D.: 1/4 in
• Thread: 1/4-20
• Type: Drop Forged, Male
• System of Measurement: Inch
• Thread Direction: Right Hand
• Pack Size: Small Pack
• Rod End Standards: ASTM A193-B7
• Material Quality Standard: ASTM A193-B7
• Globally Sourced: Made in USA*
• Manufacturer Location: Made in USA*
• Material Quality Standards: ASTM A193-B7
• Drive Type: No Drive
• Thread Type: UNC (Coarse)
• Item: Rod End
• Material: Alloy Steel

This Rod Ends is selected for dependable day-to-day use.

Recommended for field service tasks and on-site replacement and a practical option for maintenance teams and procurement.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
