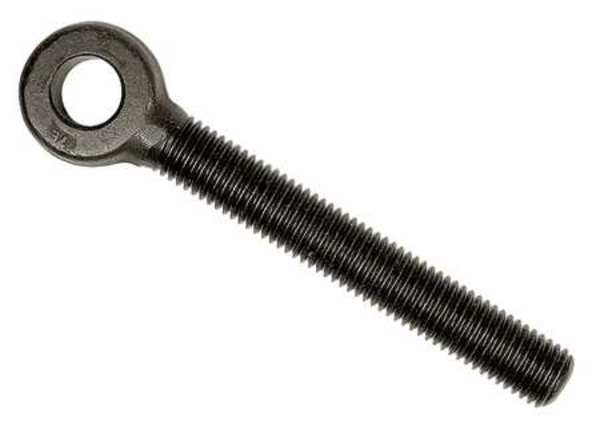

Rod End, Alloy Steel, Black Oxide, 1/4"-20 Thrd Sz, 6 in Overall Lg

KEN FORGING — Rod Ends — Rod End, Alloy Steel, Black Oxide, 1/4"-20 Thrd Sz, 6 in Overall Lg

Designed for professional use, this KEN FORGING Rod Ends helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Alloy Steel
• Finish: Black Oxide
• System of Measurement: Inch
• Length: 6 in
• Manufacturer Part Number: 1E-B7MACH
• UPC: -

Product information

• Country of Origin: United States
• Manufacturer Part Number: 1E-B7MACH
• UPC: -

Dimensions

• Boss Thickness: 1/4 in
• Shank Dia.: 1/4 in
• Boss Diameter: 39/64 in
• Dia./Thread Size: 1/4"-20
• Shank Diameter: 1/4 in
• Screw Size: 1/4 in
• Overall Length: 6 in
• Eye Inside Diameter: 1/4 in
• Eye Thickness: 1/4 in
• Eye Outside Diameter: 39/64 in
• Hole Center-to-End Length: 6 in
• Thread Length: 6 in
• Thread Size: 1/4"-20
• Length: 6 in

Details

• Finish: Black Oxide
• Thread Style: Fully Threaded
• Shank Type: Externally Threaded
• Thread: 1/4-20
• Hole I.D.: 1/4 in
• Type: Drop Forged, Male
• Material Quality Standard: ASTM A193-B7
• Rod End Standards: ASTM A193-B7
• Pack Size: Small Pack
• Globally Sourced: Made in USA*
• System of Measurement: Inch
• Thread Direction: Right Hand
• Manufacturer Location: Made in USA*
• Material Quality Standards: ASTM A193-B7
• Drive Type: No Drive
• Thread Type: UNC (Coarse)
• CAD Available: Yes
• Item: Rod End
• Material: Alloy Steel
• Material Grade/Class: 4140

This Rod Ends is a practical option for maintenance teams and procurement.

Recommended for planned maintenance programs and selected for dependable day-to-day use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
