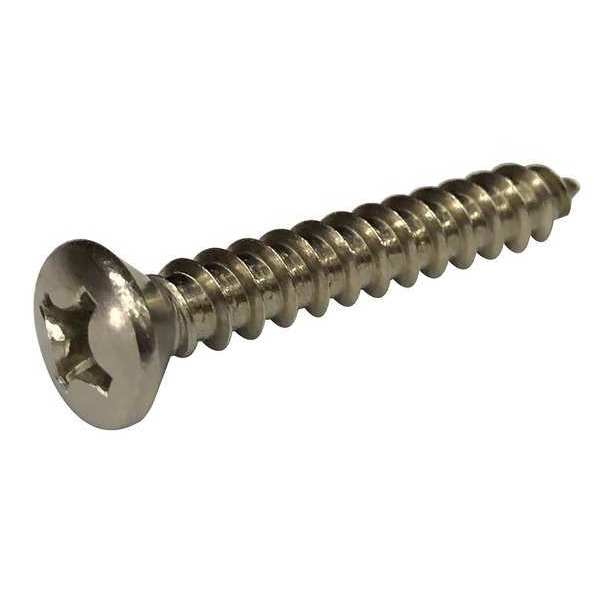

Sheet Metal Screw, #14 x 1-1/4 in, Plain 18-8 Stainless Steel Pan Head Phillips Drive, 100 PK

CONTRACTOR SELECT — Self-Tapping Screws — Sheet Metal Screw, #14 x 1-1/4 in, Plain 18-8 Stainless Steel Pan Head Phillips Drive, 100 PK

Designed for professional use, this CONTRACTOR SELECT Self-Tapping Screws helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: 18-8 Stainless Steel
• Finish: Plain
• System of Measurement: Inch
• Screw Size: #14
• Manufacturer Part Number: 1VE94
• UPC: -

Product information

• Manufacturer Part Number: 1VE94
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Head Width: 0.492 in
• Maximum Head Height: 11/64 in
• Thread Size: #14
• For Maximum Material Thickness: 1/4 in
• Maximum Head Width: 31/64 in
• Screw Size: #14
• Fastener Length: 1-1/4 in
• Drive Size: #3
• Head Height: 0.172 in
• Head Dia.: 0.492 in

Details

• Item: Sheet Metal Screw
• Standards: ANSI/ASME B18.6.4, SAE J933, IFI
• Meets/Exceeds: ANSI/ASME B18.6.4 and SAE J933 and IFI
• Material Quality Standards: SAE J933
• Pack Size: Small
• Dimensional Standards: ASME B18.6.4, SAE J933
• Point Type: A
• Type: Sheet Metal Screw
• Thread Type: Coarse
• For Use in Systems: General Purpose Threaded Fasteners for Insertion of Pre-Tapped Holes or for Use With Nuts, High Pressure, Vacuum
• Material Grade/Class: 18-8
• System of Measurement: Inch
• Head Type: Pan
• Drive: Phillips
• Tip Type: Pointed
• Material: 18-8 Stainless Steel
• Finish: Plain
• Materials for Use With: Metal
• Thread Style: Fully Threaded

This Self-Tapping Screws is chosen for predictable fit and professional handling.

Recommended for planned maintenance programs and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
