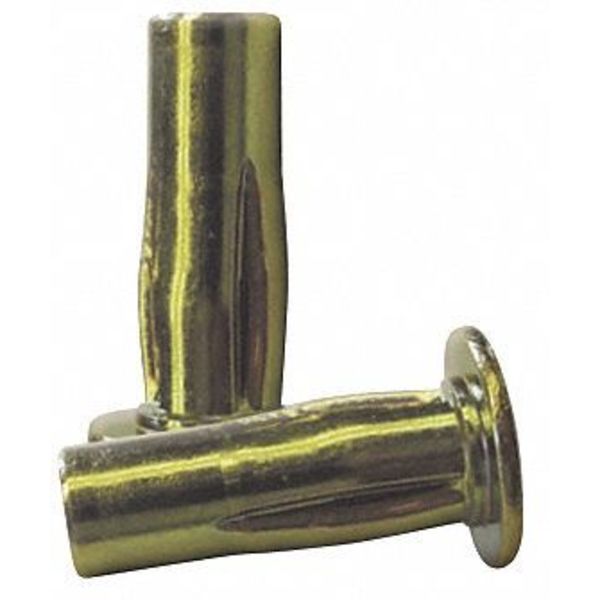

Slotted Body Rivet Nut, M8-1.25 Dia./Thread Size, 19.65 in Head Dia., 28.95 mm L, Steel, 5 PK

CONTRACTOR SELECT — Rivet Nuts — Slotted Body Rivet Nut, M8-1.25 Dia./Thread Size, 19.65 in Head Dia., 28.95 mm L, Steel, 5 PK

CONTRACTOR SELECT Rivet Nuts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Steel
• Finish: Zinc Yellow
• System of Measurement: Metric
• Overall Length: 28.95 mm
• Manufacturer Part Number: CPB2-8125-7.1-5
• UPC: -

Product information

• Manufacturer Part Number: CPB2-8125-7.1-5
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Hole Size: 12.7 mm
• Head Height: 1.57 mm
• Maximum Material Thickness: 7.1 mm
• Minimum Material Thickness: 0.5 mm
• Maximum Hole Diameter: 12.7 mm
• Installed Length: 14.48 mm
• Body Length: 28.95 mm
• Flange Thickness: 1.57 mm
• Thread Size: M8-1.25
• Drill Bit Size: 1/2"
• Flange Diameter: 190.65 mm
• Insert Diameter: 12.57 mm
• Overall Length: 28.95 mm

Details

• Body Texture: Smooth
• Material: Steel
• Finish: Zinc Yellow
• Grip Range: 0.50 in to 7.10 in
• System of Measurement: Metric
• End Type: Open
• Application: Used to Securely Fasten Metals
• Rivet Nut Type: Slotted Body
• Thread Type: Coarse
• Thread Pitch: 1.25 mm
• Compatible Material: Metal
• Material Grade/Class: 1008/1010
• Thread Fit: 2B
• Insert Nut Type: Rivet Nut
• Body Type: Bulbed
• CAD Available: Yes
• Item: Rivet Nut

This Rivet Nuts is chosen for predictable fit and professional handling.

Recommended for planned maintenance programs and a practical option for maintenance teams and procurement.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
