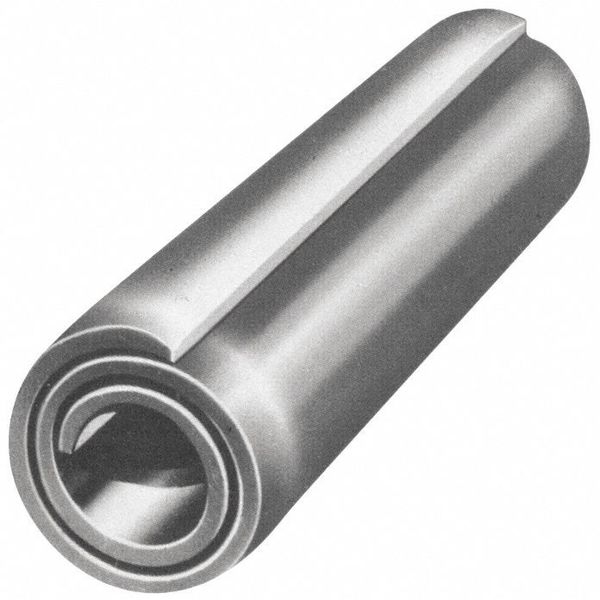

Spring P, Coiled, 1/16x3/16, 330lb, PK100

CONTRACTOR SELECT — Spring Pins — Spring P, Coiled, 1/16x3/16, 330lb, PK100

A practical Spring Pins by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 3/16"
• Manufacturer Part Number: U51430.006.0018
• UPC: -

Product information

• UPC: -
• Country of Origin: Multiple
• Manufacturer Part Number: U51430.006.0018

Dimensions

• Chamfer Diameter: 0.059 in
• Actual Dia. (Min.-Max): 0.067-0.072 in
• Fits Hole Dia. (Min.-Max.): 0.061-0.065 in
• Overall Length: 3/16"
• Fits Minimum Hole Diameter: 1/16 in
• Outside Diameter Tolerance: Max 0.072, Min 0.067
• Pin Diameter: 1/16 in
• Shank Length Tolerance: +/-0.025 in
• Shank Length: 3/16 in
• Usable Length: 3/16 in
• Maximum Chamfer Length: 0.028 in
• Fits Maximum Hole Diameter: 1/16 in
• Outside Dia.: 1/16 in
• Fastener Length: 3/16 in
• Chamfer Length Reference: 0.028 in
• Nominal Diameter: 1/16 in

Details

• Material Grade: 420
• Standards: ASME B18.8.2
• Meets: ASME B18.8.2
• Material: Stainless Steel
• Double Shear Strength (Lbs.): 330 lb
• Type: Coiled
• Item: Coiled Spring Pin, 1/16" dia,3/16" L,PK100
• Rockwell Hardness: HV 460-560
• Finish: Plain
• End Type: Chamfered
• Dimensional Standards: ASME B18.8.2
• Material Grade/Class: 420
• Pin Type: Coiled
• Manufacturer Location: Globally Sourced
• Pin Item: Spring Pin
• System of Measurement: Inch
• Spring Pin Type: Coiled
• Basic Material: Stainless Steel

This Spring Pins is intended for professional buyers focused on durability and uptime.

Recommended for inventory replenishment and standardization and selected for dependable day-to-day use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
