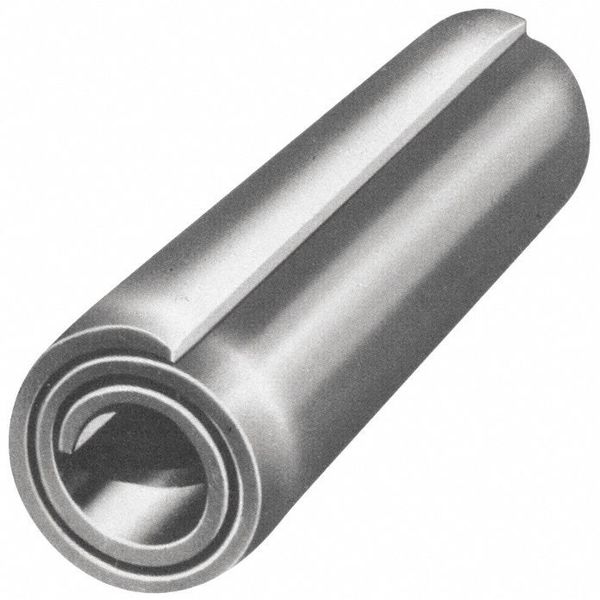

Spring P, Coiled, 1/4x2-1/2, 5500lb, PK25

CONTRACTOR SELECT — Spring Pins — Spring P, Coiled, 1/4x2-1/2, 5500lb, PK25

CONTRACTOR SELECT Spring Pins built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 2-1/2"
• Manufacturer Part Number: U39140.025.0250
• UPC: -

Product information

• UPC: -
• Country of Origin: Multiple
• Manufacturer Part Number: U39140.025.0250

Dimensions

• Fits Minimum Hole Diameter: 1/4 in
• Pin Diameter: 1/4 in
• Shank Length: 2 1/2 in
• Fits Maximum Hole Diameter: 1/4 in
• Outside Dia.: 1/4 in
• Fastener Length: 2 1/2 in
• Actual Dia. (Min.-Max): 0.260-0.271 in
• Chamfer Diameter: 0.243 in
• Overall Length: 2-1/2"
• Chamfer Length Reference: 0.065 in
• Fits Hole Dia. (Min.-Max.): 0.247-0.256 in
• Nominal Diameter: 1/4 in
• Outside Diameter Tolerance: +/-0.011 in
• Shank Length Tolerance: +/-0.025 in
• Maximum Chamfer Length: 0.065 in
• Usable Length: 2 1/2 in

Details

• Material: Steel
• Item: Coiled Spring Pin, 0.25" dia,2.5" L,Coiled,PK25
• Double Shear Strength (Lbs.): 5,500 lb
• Finish: Plain
• Type: Coiled
• End Type: Chamfered
• Material Grade/Class: Ungraded
• Product Type: Spring Pin
• Pin Type: Coiled
• Manufacturer Location: Globally Sourced
• Pin Item: Spring Pin
• System of Measurement: Inch
• Spring Pin Type: Coiled
• Basic Material: Steel
• Material Grade: Spring Steel
• Fastener Finish: Plain
• Standards: ASME B18.8.2
• Meets: ASME B18.8.2

This Spring Pins is intended for professional buyers focused on durability and uptime.

Recommended for facility operations and routine servicing and chosen for predictable fit and professional handling.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
