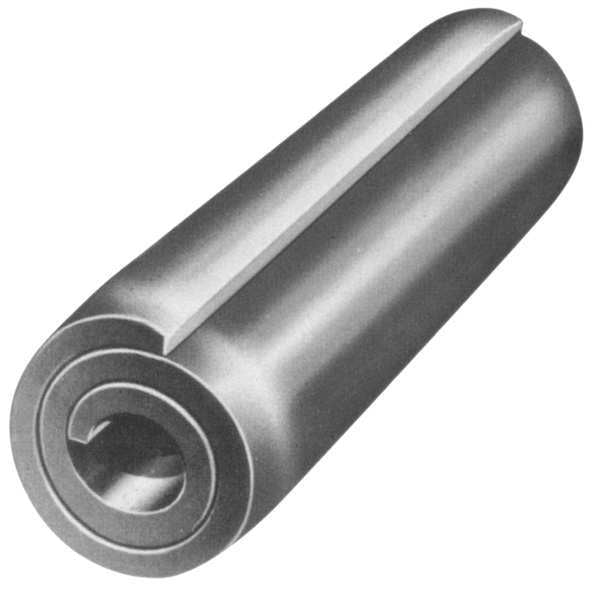

Spring P, HD Coil, 3/16x1-1/2, 4500lb, PK25

Spring P, HD Coil, 3/16x1-1/2, 4500lb, PK25

by CONTRACTOR SELECT
$5.22 - $5.22
$5.22
$11.34
$11.34 - $11.34
$11.34

CONTRACTOR SELECT — Spring Pins — Spring P, HD Coil, 3/16x1-1/2, 4500lb, PK25

This Spring Pins from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

  • Material: Steel
  • Finish: Plain
  • System of Measurement: Inch
  • Overall Length: 1-1/2"
  • Manufacturer Part Number: U39150.018.0150
  • UPC: -

Product information

  • UPC: -
  • Country of Origin: Multiple
  • Manufacturer Part Number: U39150.018.0150

Dimensions

  • Overall Length: 1-1/2"
  • Nominal Diameter: 3/16 in
  • Pin Diameter: 3/16 in
  • Maximum Chamfer Length: 0.055 in
  • Fits Minimum Hole Diameter: 3/16 in
  • Shank Length Tolerance: +/-0.025 in
  • Shank Length: 1/2 in
  • Fits Maximum Hole Diameter: 3/16 in
  • Outside Diameter Tolerance: +/-0.008 in
  • Usable Length: 1 1/2 in
  • Outside Dia.: 3/16 in
  • Fastener Length: 1 1/2 in
  • Chamfer Diameter: 0.182 in
  • Chamfer Length Reference: 0.055 in
  • Actual Dia. (Min.-Max): 0.194-0.202 in
  • Fits Hole Dia. (Min.-Max.): 0.185-0.192 in

Details

  • Finish: Plain
  • End Type: Chamfered
  • Manufacturer Location: Globally Sourced
  • Material Grade/Class: Ungraded
  • Pin Type: Coiled
  • Product Type: Spring Pin
  • Pin Item: Spring Pin
  • System of Measurement: Inch
  • Spring Pin Type: Coiled
  • Basic Material: Steel
  • Material Grade: Spring Steel
  • Fastener Finish: Plain
  • Standards: ASME B18.8.2
  • Material: Steel
  • Double Shear Strength (Lbs.): 4,500 lb
  • Item: Coiled Spring Pin, 3/16" dia,0.5" L,Coiled,PK25
  • Meets: ASME B18.8.2
  • Type: Heavy Duty Coiled

This Spring Pins is well-suited for replacement, upgrade, and stock-room use.

Recommended for maintenance and repair workflows and selected for dependable day-to-day use.

Highlights

  • Helps keep specifications consistent across replacements and replenishment cycles.
  • Designed for professional use where predictable fit and handling are important.
  • Works well in standardized part lists and preventative maintenance schedules.
  • Clear specification formatting helps reduce ordering mistakes.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
