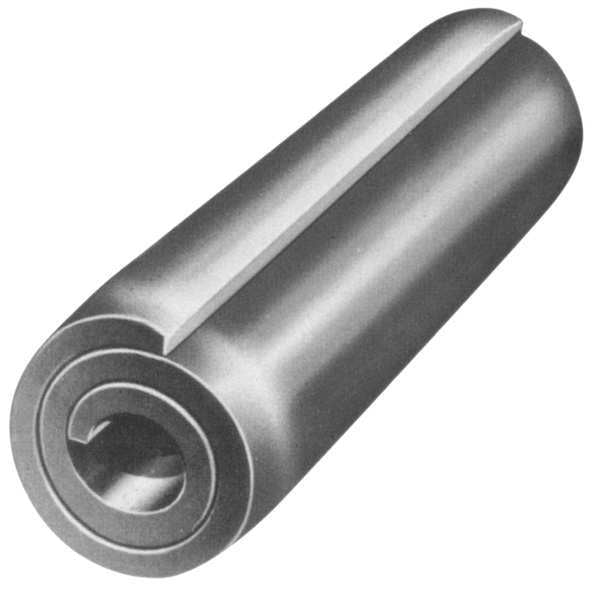

Spring P, HD Coil, 3/16x1-1/4, 4500lb, PK10

CONTRACTOR SELECT — Spring Pins — Spring P, HD Coil, 3/16x1-1/4, 4500lb, PK10

A practical Spring Pins by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 1-1/4"
• Manufacturer Part Number: U51431.018.0125
• UPC: -

Product information

• Country of Origin: Multiple
• Manufacturer Part Number: U51431.018.0125
• UPC: -

Dimensions

• Usable Length: 1 1/4 in
• Pin Diameter: 3/16 in
• Shank Length Tolerance: +/-0.025 in
• Maximum Chamfer Length: 0.055 in
• Shank Length: 1 1/4 in
• Fits Maximum Hole Diameter: 3/16 in
• Outside Diameter Tolerance: Max 0.202, Min 0.194
• Outside Dia.: 3/16 in
• Fastener Length: 1 1/4 in
• Nominal Diameter: 3/16 in
• Chamfer Diameter: 0.182 in
• Overall Length: 1-1/4"
• Actual Dia. (Min.-Max): 0.194-0.202 in
• Chamfer Length Reference: 0.055 in
• Fits Hole Dia. (Min.-Max.): 0.185-0.192 in
• Fits Minimum Hole Diameter: 3/16 in

Details

• Material Grade: 420
• Standards: ASME B18.8.2
• Double Shear Strength (Lbs.): 4,500 lb
• Type: Heavy Duty Coiled
• Item: Coiled Spring Pin, 3/16" dia,1.25" L,Coiled,PK10
• Material: Stainless Steel
• Meets: ASME B18.8.2
• Finish: Plain
• Rockwell Hardness: HV 460-560
• Manufacturer Location: Globally Sourced
• Material Grade/Class: 420
• Dimensional Standards: ASME B18.8.2
• Pin Type: Coiled
• End Type: Chamfered
• Pin Item: Spring Pin
• System of Measurement: Inch
• Spring Pin Type: Coiled
• Basic Material: Stainless Steel

This Spring Pins is well-suited for replacement, upgrade, and stock-room use.

Recommended for planned maintenance programs and intended for professional buyers focused on durability and uptime.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
