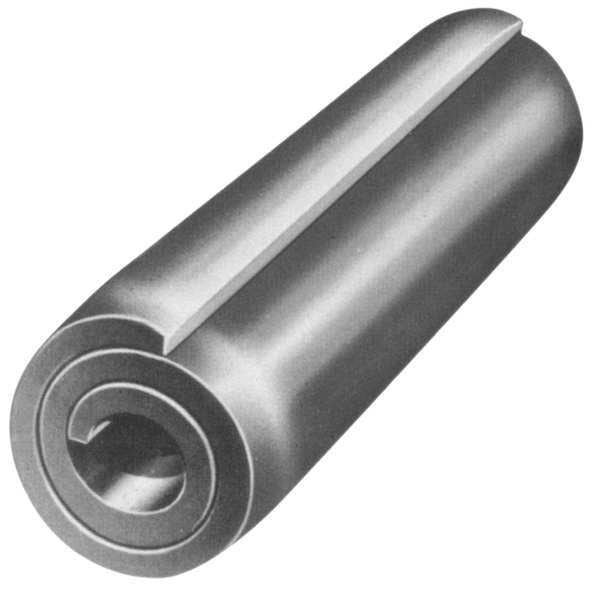

Spring P, HD Coiled, 1/4x1-1/4, 7800lb, PK10

Spring P, HD Coiled, 1/4x1-1/4, 7800lb, PK10

by CONTRACTOR SELECT
$7.54 - $7.54
$7.54
$16.38
$16.38 - $16.38
$16.38

CONTRACTOR SELECT — Spring Pins — Spring P, HD Coiled, 1/4x1-1/4, 7800lb, PK10

This Spring Pins from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

  • Material: Stainless Steel
  • Finish: Plain
  • System of Measurement: Inch
  • Overall Length: 1-1/4"
  • Manufacturer Part Number: U51431.025.0125
  • UPC: -

Product information

  • Country of Origin: Multiple
  • Manufacturer Part Number: U51431.025.0125
  • UPC: -

Dimensions

  • Fits Maximum Hole Diameter: 1/4 in
  • Maximum Chamfer Length: 0.065 in
  • Outside Dia.: 1/4 in
  • Fastener Length: 1 1/4 in
  • Nominal Diameter: 1/4 in
  • Overall Length: 1-1/4"
  • Fits Hole Dia. (Min.-Max.): 0.247-0.256 in
  • Actual Dia. (Min.-Max): 0.258-0.268 in
  • Chamfer Diameter: 0.243 in
  • Chamfer Length Reference: 0.065 in
  • Usable Length: 1 1/4 in
  • Fits Minimum Hole Diameter: 1/4 in
  • Outside Diameter Tolerance: +/-0.010 in
  • Shank Length: 1 1/4 in
  • Pin Diameter: 1/4 in
  • Shank Length Tolerance: +/-0.025 in

Details

  • Manufacturer Location: Globally Sourced
  • Pin Item: Spring Pin
  • System of Measurement: Inch
  • Spring Pin Type: Coiled
  • Basic Material: Stainless Steel
  • Material Grade: 420
  • Standards: ASME B18.8.2
  • Type: Heavy Duty Coiled
  • Meets: ASME B18.8.2
  • Material: Stainless Steel
  • Item: Coiled Spring Pin, 1/4" dia,1.25" L,Coiled,PK10
  • Double Shear Strength (Lbs.): 7,800 lb
  • Finish: Plain
  • Product Type: Spring Pin
  • Pin Type: Coiled
  • Material Grade/Class: 420
  • End Type: Chamfered

This Spring Pins is chosen for predictable fit and professional handling.

Recommended for production support and bench work and designed to support reliable operation in demanding environments.

Highlights

  • Clear specification formatting helps reduce ordering mistakes.
  • Organized for straightforward purchasing and stocking.
  • Suitable for maintenance, repair, and project-based procurement.
  • Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
