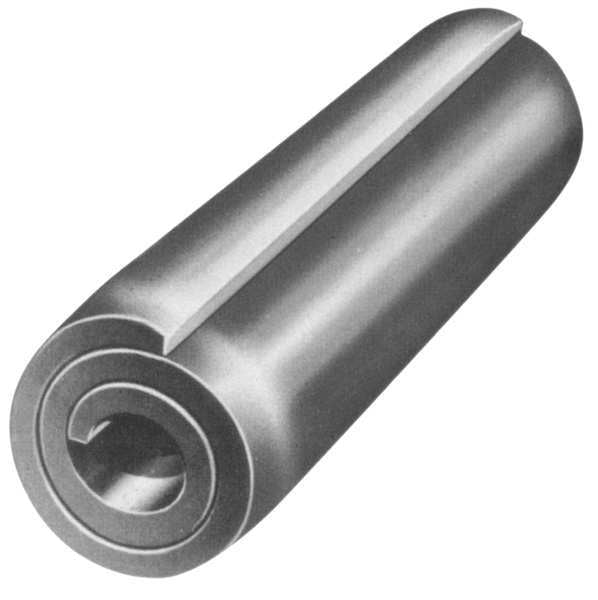

Spring P, HD Coiled, 5/32x9/16, 3100lb, PK50

Spring P, HD Coiled, 5/32x9/16, 3100lb, PK50

by CONTRACTOR SELECT
$5.80 - $5.80
$5.80
$12.60
$12.60 - $12.60
$12.60

CONTRACTOR SELECT — Spring Pins — Spring P, HD Coiled, 5/32x9/16, 3100lb, PK50

A practical Spring Pins by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

  • Material: Steel
  • Finish: Plain
  • Spring Pin Type: Coiled
  • Overall Length: 9/16"
  • Manufacturer Part Number: U39150.015.0056
  • UPC: -

Product information

  • Manufacturer Part Number: U39150.015.0056
  • UPC: -
  • Country of Origin: Multiple

Dimensions

  • Overall Length: 9/16"
  • Fits Hole Dia. (Min.-Max.): 0.155-0.160 in
  • Outside Diameter Tolerance: Max 0.168, Min 0.161
  • Shank Length: 9/16 in
  • Fits Maximum Hole Diameter: 5/32 in
  • Usable Length: 9/16 in
  • Fits Minimum Hole Diameter: 5/32 in
  • Maximum Chamfer Length: 0.048 in
  • Pin Diameter: 5/32 in
  • Shank Length Tolerance: +/-0.025 in
  • Outside Dia.: 5/32 in
  • Fastener Length: 9/16 in
  • Chamfer Diameter: 0.152 in
  • Chamfer Length Reference: 0.048 in
  • Nominal Diameter: 5/32 in
  • Actual Dia. (Min.-Max): 0.161-0.168 in

Details

  • Material Grade: Spring Steel
  • Fastener Finish: Plain
  • Standards: ASME B18.8.2
  • Type: Heavy Duty Coiled
  • Material: Steel
  • Meets: ASME B18.8.2
  • Double Shear Strength (Lbs.): 3,100 lb
  • Item: Coiled Spring Pin, 5/32" dia,0.5625" L,PK50
  • Finish: Plain
  • Rockwell Hardness: HV 420-545
  • Pin Type: Coiled
  • Dimensional Standards: ASME B18.8.2
  • Material Grade/Class: SAE 1070
  • Manufacturer Location: Globally Sourced
  • Spring Pin Type: Coiled
  • Basic Material: Steel

This Spring Pins is selected for dependable day-to-day use.

Recommended for planned maintenance programs and well-suited for replacement, upgrade, and stock-room use.

Highlights

  • Clear specification formatting helps reduce ordering mistakes.
  • Organized for straightforward purchasing and stocking.
  • Suitable for maintenance, repair, and project-based procurement.
  • Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
