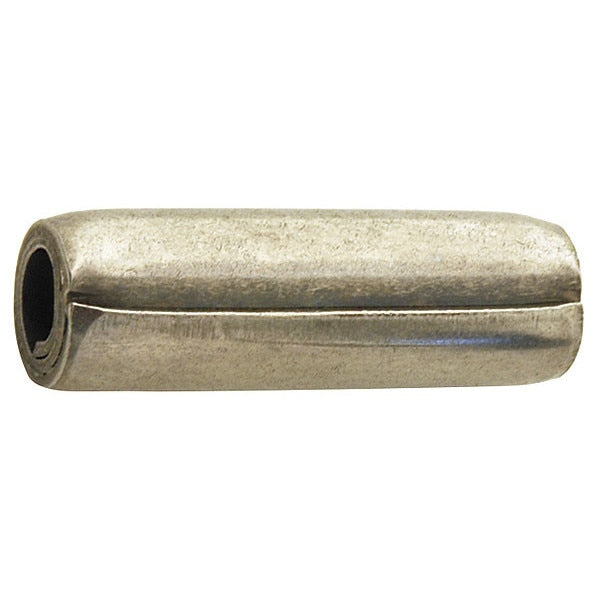

Spring Pin, 3/32x1 1/2 In L, Pk50

CONTRACTOR SELECT — Spring Pins — Spring Pin, 3/32x1 1/2 In L, Pk50

Designed for professional use, this CONTRACTOR SELECT Spring Pins helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• Spring Pin Type: Coiled
• Overall Length: 1-1/2"
• Manufacturer Part Number: 5EA14
• UPC: 848790005214

Product information

• Country of Origin: United States
• Manufacturer Part Number: 5EA14
• UPC: 848790005214

Dimensions

• Nominal Diameter: 3/32 in
• Overall Length: 1-1/2"
• Length Tolerance: +/-0.010 in
• Shank Length Tolerance: +/-0.010 in
• Fits Minimum Hole Diameter: 3/32 in
• Fits Maximum Hole Diameter: 3/32 in
• Maximum Chamfer Length: 0.038 in
• Pin Diameter: 3/32 in
• Shank Length: 1 1/2 in
• Usable Length: 1 1/2 in
• Outside Dia.: 3/32 in
• Fastener Length: 1 1/2 in
• Fits Hole Dia. (Min.-Max.): 0.093-0.097 in
• Chamfer Length Reference: 0.038 in
• Actual Dia. (Min.-Max): 0.098-0.103 in
• Chamfer Diameter: 0.091 in

Details

• Spring Pin Type: Coiled
• Basic Material: Stainless Steel
• Material Grade: 420
• Fastener Finish: Passivated
• Standards: ASME B18.8.2
• Item: Coiled Spring Pin, 3/32" dia,1 1/2" L,PK50
• Finish: Plain
• Double Shear Strength (Lbs.): 825 lb
• Rockwell Hardness: Work Hardened
• Meets: ASME B18.8.2M
• Type: Heavy Duty Coiled
• Material: Stainless Steel
• Product Type: Coiled Spring Pin
• Material Grade/Class: 420
• End Type: Chamfered
• Manufacturer Location: Made in USA*

This Spring Pins is selected for dependable day-to-day use.

Recommended for field service tasks and on-site replacement and designed to support reliable operation in demanding environments.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
