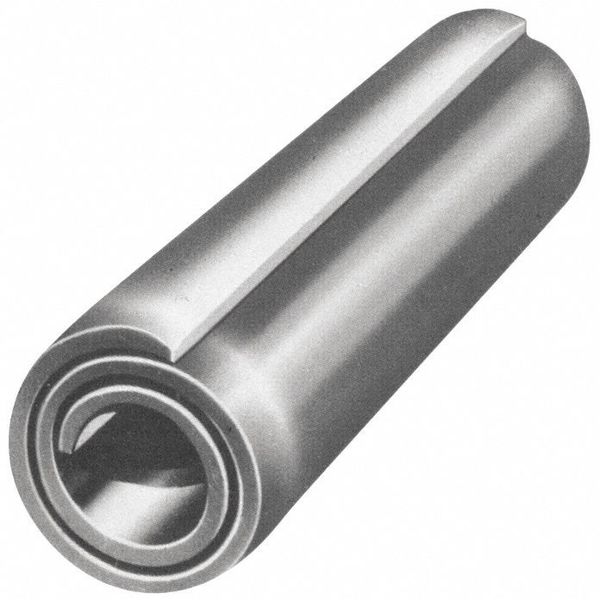

Spring Pin, Coiled, 1/8x5/8in, 1400lb, PK25

CONTRACTOR SELECT — Spring Pins — Spring Pin, Coiled, 1/8x5/8in, 1400lb, PK25

CONTRACTOR SELECT Spring Pins built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 5/8"
• Manufacturer Part Number: U51430.012.0062
• UPC: -

Product information

• Manufacturer Part Number: U51430.012.0062
• UPC: -
• Country of Origin: Multiple

Dimensions

• Usable Length: 5/8 in
• Maximum Chamfer Length: 0.044 in
• Shank Length: 5/8 in
• Pin Diameter: 1/8 in
• Fits Minimum Hole Diameter: 1/8 in
• Fits Maximum Hole Diameter: 1/8 in
• Outside Dia.: 1/8 in
• Fastener Length: 5/8 in
• Chamfer Diameter: 0.121 in
• Nominal Diameter: 1/8 in
• Fits Hole Dia. (Min.-Max.): 0.124-0.129 in
• Chamfer Length Reference: 0.044 in
• Actual Dia. (Min.-Max): 0.131-0.138 in
• Overall Length: 5/8"
• Outside Diameter Tolerance: +/-0.007 in
• Shank Length Tolerance: +/-0.025 in

Details

• Material Grade/Class: 420
• Pin Item: Spring Pin
• System of Measurement: Inch
• Spring Pin Type: Coiled
• Basic Material: Stainless Steel
• Material Grade: 420
• Standards: ASME B18.8.2
• Meets: ASME B18.8.2
• Material: Stainless Steel
• Item: Coiled Spring Pin, 1/8" dia,0.625" L,Coiled,PK25
• Type: Coiled
• Double Shear Strength (Lbs.): 1,400 lb
• Finish: Plain
• End Type: Chamfered
• Product Type: Spring Pin
• Pin Type: Coiled
• Manufacturer Location: Globally Sourced

This Spring Pins is well-suited for replacement, upgrade, and stock-room use.

Recommended for production support and bench work and selected for dependable day-to-day use.

Highlights

• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
