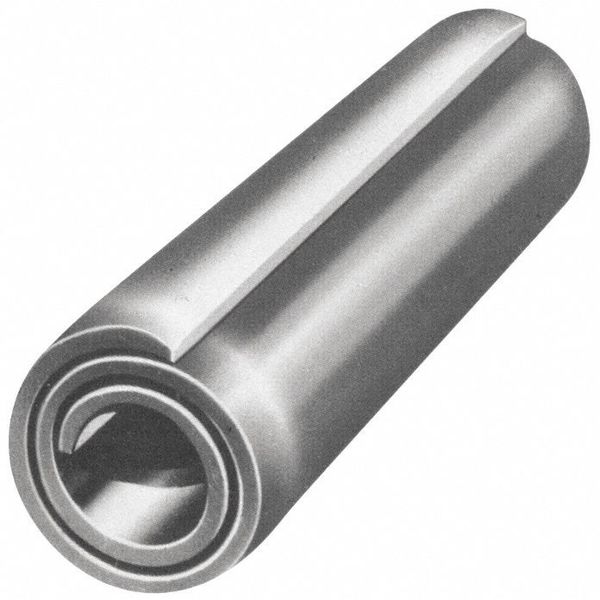

Spring Pin, Coiled, 3/16x3/4in, 3150lb, PK50

Spring Pin, Coiled, 3/16x3/4in, 3150lb, PK50

by CONTRACTOR SELECT
$6.38 - $6.38
$6.38
$13.86
$13.86 - $13.86
$13.86

CONTRACTOR SELECT — Spring Pins — Spring Pin, Coiled, 3/16x3/4in, 3150lb, PK50

Designed for professional use, this CONTRACTOR SELECT Spring Pins helps keep parts and tooling consistent across routine service tasks.

Quick specs

  • Material: Steel
  • Finish: Plain
  • System of Measurement: Inch
  • Overall Length: 3/4"
  • Manufacturer Part Number: U39140.018.0075
  • UPC: -

Product information

  • UPC: -
  • Country of Origin: Multiple
  • Manufacturer Part Number: U39140.018.0075

Dimensions

  • Maximum Chamfer Length: 0.055 in
  • Outside Diameter Tolerance: +/-0.009 in
  • Pin Diameter: 3/16 in
  • Shank Length: 3/4 in
  • Shank Length Tolerance: +/-0.025 in
  • Fits Maximum Hole Diameter: 3/16 in
  • Fits Minimum Hole Diameter: 3/16 in
  • Usable Length: 3/4 in
  • Outside Dia.: 3/16 in
  • Fastener Length: 3/4 in
  • Actual Dia. (Min.-Max): 0.196-0.205 in
  • Overall Length: 3/4"
  • Fits Hole Dia. (Min.-Max.): 0.185-0.192 in
  • Nominal Diameter: 3/16 in
  • Chamfer Length Reference: 0.055 in
  • Chamfer Diameter: 0.182 in

Details

  • Material Grade: Spring Steel
  • Fastener Finish: Plain
  • Standards: ASME B18.8.2
  • Item: Coiled Spring Pin, 0.1875" dia,0.75" L,PK50
  • Meets: ASME B18.8.2
  • Type: Coiled
  • Finish: Plain
  • Material: Steel
  • Double Shear Strength (Lbs.): 3,150 lb
  • Product Type: Spring Pin
  • End Type: Chamfered
  • Pin Type: Coiled
  • Manufacturer Location: Globally Sourced
  • Material Grade/Class: Ungraded
  • Pin Item: Spring Pin
  • System of Measurement: Inch
  • Spring Pin Type: Coiled
  • Basic Material: Steel

This Spring Pins is selected for dependable day-to-day use.

Recommended for inventory replenishment and standardization and designed to support reliable operation in demanding environments.

Highlights

  • Organized for straightforward purchasing and stocking.
  • Suitable for maintenance, repair, and project-based procurement.
  • Helps keep specifications consistent across replacements and replenishment cycles.
  • Designed for professional use where predictable fit and handling are important.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
