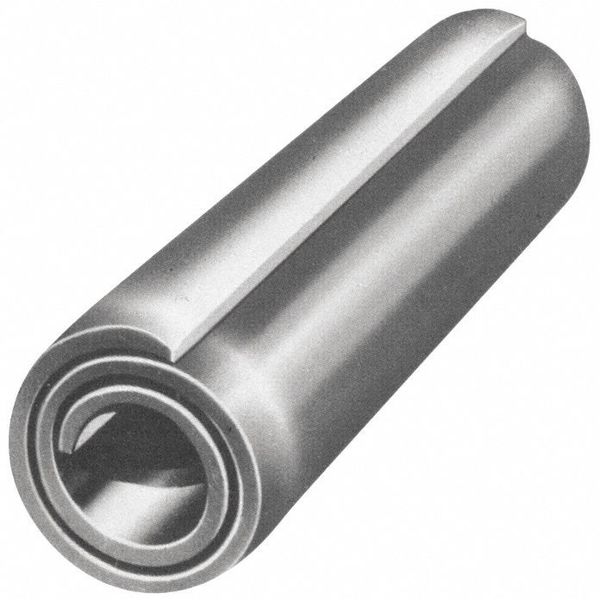

Spring Pin, Coiled, 3/8inx2in, Pln, PK5

Spring Pin, Coiled, 3/8inx2in, Pln, PK5

by CONTRACTOR SELECT
$4.64 - $4.64
$4.64
$10.08
$10.08 - $10.08
$10.08

CONTRACTOR SELECT — Spring Pins — Spring Pin, Coiled, 3/8inx2in, Pln, PK5

Designed for professional use, this CONTRACTOR SELECT Spring Pins helps keep parts and tooling consistent across routine service tasks.

Quick specs

  • Material: Steel
  • Finish: Plain
  • System of Measurement: Inch
  • Overall Length: 2"
  • Manufacturer Part Number: U39140.037.0200
  • UPC: -

Product information

  • UPC: -
  • Country of Origin: Multiple
  • Manufacturer Part Number: U39140.037.0200

Dimensions

  • Chamfer Diameter: 0.366 in
  • Overall Length: 2"
  • Chamfer Length Reference: 0.095 in
  • Shank Length Tolerance: +/-0.025 in
  • Fits Maximum Hole Diameter: 25/64 in
  • Maximum Chamfer Length: 0.095 in
  • Shank Length: 2 in
  • Usable Length: 2 in
  • Fits Minimum Hole Diameter: 3/8 in
  • Pin Diameter: 3/8 in
  • Outside Diameter Tolerance: +/-0.015 in
  • Outside Dia.: 3/8 in
  • Fastener Length: 2 in
  • Nominal Diameter: 3/8 in
  • Fits Hole Dia. (Min.-Max.): 0.370-0.383 in
  • Actual Dia. (Min.-Max): 0.388-0.403 in

Details

  • Basic Material: Steel
  • Material Grade: Spring Steel
  • Fastener Finish: Plain
  • Standards: ASME B18.8.2
  • Double Shear Strength (Lbs.): 12,600 lb
  • Finish: Plain
  • Item: Coiled Spring Pin, 0.375" dia,2" L,Coiled,PK5
  • Type: Coiled
  • Meets: ASME B18.8.2
  • Material: Steel
  • End Type: Chamfered
  • Manufacturer Location: Globally Sourced
  • Pin Type: Coiled
  • Material Grade/Class: Ungraded
  • Product Type: Spring Pin
  • Pin Item: Spring Pin
  • System of Measurement: Inch
  • Spring Pin Type: Coiled

This Spring Pins is intended for professional buyers focused on durability and uptime.

Recommended for facility operations and routine servicing and well-suited for replacement, upgrade, and stock-room use.

Highlights

  • Clear specification formatting helps reduce ordering mistakes.
  • Organized for straightforward purchasing and stocking.
  • Suitable for maintenance, repair, and project-based procurement.
  • Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
