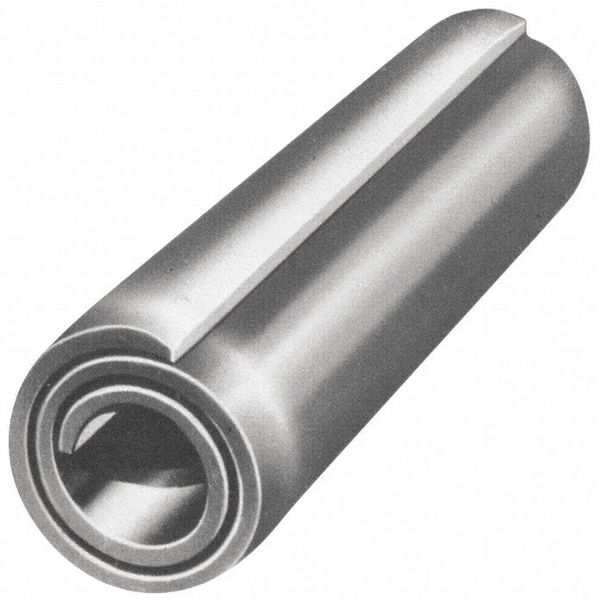

Spring Pin, Coiled, 5/32x3/4in, 2200lb, PK50

CONTRACTOR SELECT — Spring Pins — Spring Pin, Coiled, 5/32x3/4in, 2200lb, PK50

Designed for professional use, this CONTRACTOR SELECT Spring Pins helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 3/4"
• Manufacturer Part Number: U39140.015.0075
• UPC: -

Product information

• Manufacturer Part Number: U39140.015.0075
• UPC: -
• Country of Origin: Multiple

Dimensions

• Actual Dia. (Min.-Max): 0.163-0.171 in
• Fits Hole Dia. (Min.-Max.): 0.155-0.160 in
• Nominal Diameter: 5/32 in
• Pin Diameter: 5/32 in
• Shank Length: 3/4 in
• Fits Minimum Hole Diameter: 5/32 in
• Maximum Chamfer Length: 0.048 in
• Shank Length Tolerance: +/-0.025 in
• Usable Length: 3/4 in
• Fits Maximum Hole Diameter: 5/32 in
• Outside Dia.: 5/32 in
• Fastener Length: 3/4 in
• Overall Length: 3/4"
• Chamfer Diameter: 0.152 in
• Chamfer Length Reference: 0.048 in

Details

• Basic Material: Steel
• Material Grade: Spring Steel
• Fastener Finish: Plain
• Standards: ASME B18.8.2
• Finish: Plain
• Item: Coiled Spring Pin, 5/32" dia,3/4" L,Coiled,PK50
• Type: Coiled
• Material: Steel
• Meets: ASME B18.8.2
• Double Shear Strength (Lbs.): 2,200 lb
• Product Type: Spring Pin
• Pin Type: Coiled
• Manufacturer Location: Globally Sourced
• Material Grade/Class: Ungraded
• End Type: Chamfered
• Pin Item: Spring Pin
• System of Measurement: Inch
• Spring Pin Type: Coiled

This Spring Pins is intended for professional buyers focused on durability and uptime.

Recommended for facility operations and routine servicing and a practical option for maintenance teams and procurement.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
