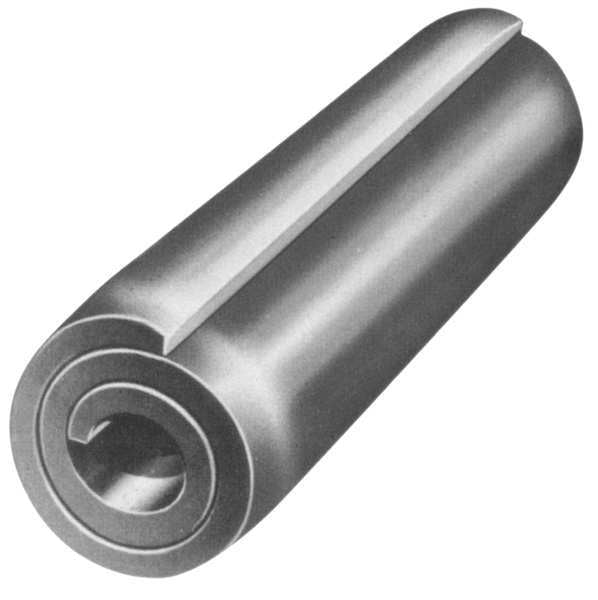

Spring Pin, HD Coiled, 3/8inx1in, PK5

Spring Pin, HD Coiled, 3/8inx1in, PK5

by CONTRACTOR SELECT
$5.80 - $5.80
$5.80
$12.60
$12.60 - $12.60
$12.60

CONTRACTOR SELECT — Spring Pins — Spring Pin, HD Coiled, 3/8inx1in, PK5

A practical Spring Pins by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

  • Material: Stainless Steel
  • Finish: Plain
  • System of Measurement: Inch
  • Overall Length: 1"
  • Manufacturer Part Number: U51431.037.0100
  • UPC: -

Product information

  • Country of Origin: Multiple
  • Manufacturer Part Number: U51431.037.0100
  • UPC: -

Dimensions

  • Shank Length: 1 in
  • Fits Minimum Hole Diameter: 25/64 in
  • Maximum Chamfer Length: 0.095 in
  • Pin Diameter: 3/8 in
  • Shank Length Tolerance: +/-0.025 in
  • Usable Length: 1 in
  • Outside Diameter Tolerance: Max 0.403, Min 0.388
  • Outside Dia.: 3/8 in
  • Fastener Length: 1 in
  • Chamfer Length Reference: 0.095 in
  • Nominal Diameter: 3/8 in
  • Actual Dia. (Min.-Max): 0.386-0.400 in
  • Overall Length: 1"
  • Fits Hole Dia. (Min.-Max.): 0.370-0.383 in
  • Chamfer Diameter: 0.366 in
  • Fits Maximum Hole Diameter: 3/8 in

Details

  • Basic Material: Stainless Steel
  • Material Grade: 420
  • Standards: ASME B18.8.2
  • Type: Heavy Duty Coiled
  • Item: Coiled Spring Pin, 3/8 in dia,1 in L,Coiled,PK5
  • Double Shear Strength (Lbs.): 18,000 lb
  • Meets: ASME B18.8.2
  • Material: Stainless Steel
  • Finish: Plain
  • Rockwell Hardness: HV 460-560
  • End Type: Chamfered
  • Dimensional Standards: ASME B18.8.2
  • Manufacturer Location: Globally Sourced
  • Material Grade/Class: 420
  • Pin Type: Coiled
  • Pin Item: Spring Pin
  • System of Measurement: Inch
  • Spring Pin Type: Coiled

This Spring Pins is intended for professional buyers focused on durability and uptime.

Recommended for facility operations and routine servicing and designed to support reliable operation in demanding environments.

Highlights

  • Designed for professional use where predictable fit and handling are important.
  • Works well in standardized part lists and preventative maintenance schedules.
  • Clear specification formatting helps reduce ordering mistakes.
  • Organized for straightforward purchasing and stocking.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
