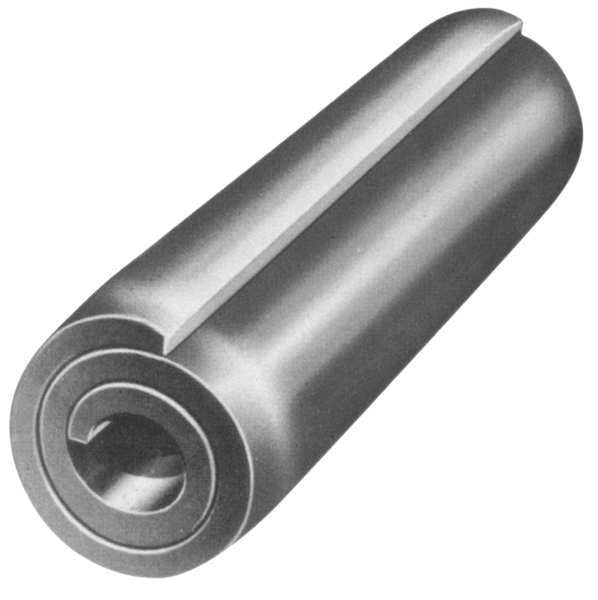

Spring Pin, HD Coiled, 5/16inx2-1/2in, PK5

Spring Pin, HD Coiled, 5/16inx2-1/2in, PK5

by CONTRACTOR SELECT
$4.64 - $4.64
$4.64
$10.08
$10.08 - $10.08
$10.08

CONTRACTOR SELECT — Spring Pins — Spring Pin, HD Coiled, 5/16inx2-1/2in, PK5

A practical Spring Pins by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

  • Material: Steel
  • Finish: Plain
  • System of Measurement: Inch
  • Overall Length: 2-1/2"
  • Manufacturer Part Number: U39150.031.0250
  • UPC: -

Product information

  • Country of Origin: Multiple
  • Manufacturer Part Number: U39150.031.0250
  • UPC: -

Dimensions

  • Actual Dia. (Min.-Max): 0.322-0.334 in
  • Fits Minimum Hole Diameter: 5/16 in
  • Outside Diameter Tolerance: +/-0.012 in
  • Shank Length: 2 1/4 in
  • Pin Diameter: 5/16 in
  • Usable Length: 2 1/2 in
  • Maximum Chamfer Length: 0.08 in
  • Fits Maximum Hole Diameter: 5/16 in
  • Shank Length Tolerance: +/-0.025 in
  • Outside Dia.: 5/16 in
  • Fastener Length: 2 1/2 in
  • Nominal Diameter: 5/16 in
  • Fits Hole Dia. (Min.-Max.): 0.308-0.319 in
  • Overall Length: 2-1/2"
  • Chamfer Diameter: 0.304 in
  • Chamfer Length Reference: 0.08 in

Details

  • Product Type: Spring Pin
  • Pin Item: Spring Pin
  • System of Measurement: Inch
  • Spring Pin Type: Coiled
  • Basic Material: Steel
  • Material Grade: Spring Steel
  • Fastener Finish: Plain
  • Standards: ASME B18.8.2
  • Item: Coiled Spring Pin, 5/16" dia,2.25" L,Coiled,PK5
  • Finish: Plain
  • Material: Steel
  • Meets: ASME B18.8.2
  • Type: Heavy Duty Coiled
  • Double Shear Strength (Lbs.): 12,000 lb
  • End Type: Chamfered
  • Pin Type: Coiled
  • Material Grade/Class: Ungraded
  • Manufacturer Location: Globally Sourced

This Spring Pins is intended for professional buyers focused on durability and uptime.

Recommended for planned maintenance programs and selected for dependable day-to-day use.

Highlights

  • Helps keep specifications consistent across replacements and replenishment cycles.
  • Designed for professional use where predictable fit and handling are important.
  • Works well in standardized part lists and preventative maintenance schedules.
  • Clear specification formatting helps reduce ordering mistakes.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
