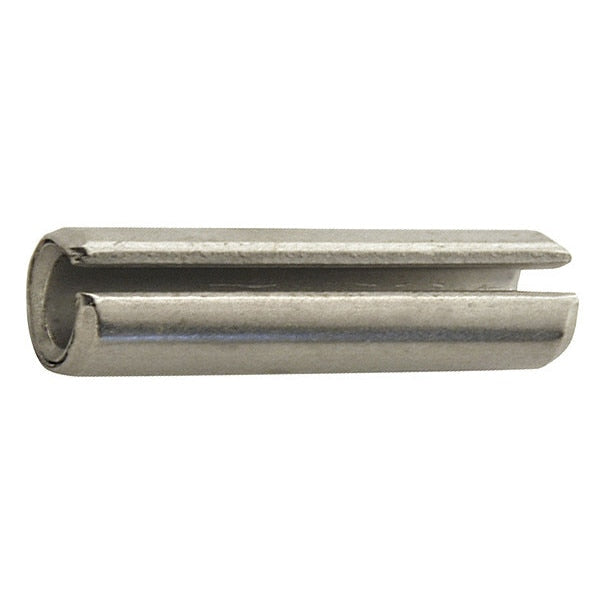

Spring Pin, Slot, 1 1/4x3/32 L, Pk100

CONTRACTOR SELECT — Spring Pins — Spring Pin, Slot, 1 1/4x3/32 L, Pk100

Designed for professional use, this CONTRACTOR SELECT Spring Pins helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• Standards: ASME B18.8.2
• Overall Length: 1-1/4"
• Manufacturer Part Number: 5BU96
• UPC: -

Product information

• UPC: -
• Country of Origin: United States
• Manufacturer Part Number: 5BU96

Dimensions

• Shank Length: 1 1/4 in
• Usable Length: 1 1/4 in
• Fits Minimum Hole Diameter: 3/32 in
• Outside Dia.: 3/32 in
• Fastener Length: 1 1/4 in
• Overall Length: 1-1/4"
• Length Tolerance: +/-0.020 in
• Actual Dia. (Min.-Max): 0.099-0.103 in
• Fits Hole Dia. (Min.-Max.): 0.094-0.097 in
• Chamfer Diameter: 0.091 in
• Wall Thickness: 0.022 in
• Nominal Diameter: 3/32 in
• Chamfer Length (Min.): 0.008 in
• Chamfer Length (Max.): 0.038 in
• Shank Length Tolerance: +/-0.020 in
• Maximum Chamfer Length: 0.038 in
• Minimum Chamfer Length: 0.008 in
• Fits Maximum Hole Diameter: 3/32 in
• Outside Diameter Tolerance: +/-0.0019995 in
• Pin Diameter: 3/32 in

Details

• Meets: ANSI/ASME B18.8.2
• Rockwell Hardness: Work Hardened
• Material Grade/Class: 18-8
• Pin Type: Slotted
• Standards: ASME B18.8.2
• Item: Slotted Spring Pin, 3/32" dia,1 1/4" L,PK100
• Double Shear Strength (Lbs.): 670 lb
• Material: Stainless Steel
• Finish: Plain
• Type: Slotted

This Spring Pins is designed to support reliable operation in demanding environments.

Recommended for maintenance and repair workflows and selected for dependable day-to-day use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
