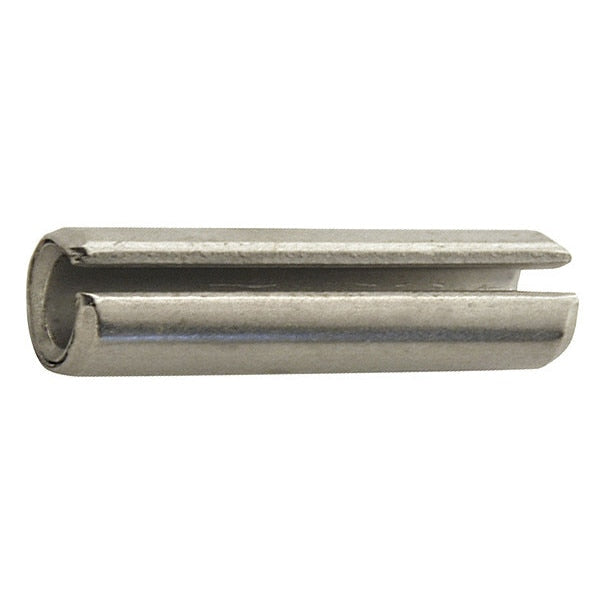

Spring Pin, Slot, 1/16x7/16 L, Pk100

Spring Pin, Slot, 1/16x7/16 L, Pk100

by CONTRACTOR SELECT
$4.06 - $4.06
$4.06
$8.82
$8.82 - $8.82
$8.82

CONTRACTOR SELECT — Spring Pins — Spring Pin, Slot, 1/16x7/16 L, Pk100

This Spring Pins from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

  • Material: Stainless Steel
  • Finish: Plain
  • Standards: ASME B18.8.2
  • Overall Length: 7/16"
  • Manufacturer Part Number: 5BU70
  • UPC: -

Product information

  • Country of Origin: United States
  • Manufacturer Part Number: 5BU70
  • UPC: -

Dimensions

  • Outside Dia.: 1/16 in
  • Fastener Length: 7/16 in
  • Chamfer Diameter: 0.059 in
  • Overall Length: 7/16"
  • Actual Dia. (Min.-Max): 0.066-0.069 in
  • Chamfer Length (Min.): 0.007 in
  • Length Tolerance: +/-0.015 in
  • Nominal Diameter: 1/16 in
  • Chamfer Length (Max.): 0.028 in
  • Wall Thickness: 0.012 in
  • Fits Hole Dia. (Min.-Max.): 0.062-0.065 in
  • Outside Diameter Tolerance: +/-0.0015 in
  • Pin Diameter: 1/16 in
  • Fits Maximum Hole Diameter: 1/16 in
  • Maximum Chamfer Length: 0.028 in
  • Shank Length Tolerance: +/-0.015 in
  • Fits Minimum Hole Diameter: 1/16 in
  • Usable Length: 7/16 in
  • Minimum Chamfer Length: 0.007 in
  • Shank Length: 7/16 in

Details

  • Standards: ASME B18.8.2
  • Meets: ANSI/ASME B18.8.2
  • Finish: Plain
  • Item: Slotted Spring Pin, 1/16" dia,7/16" L,PK100
  • Type: Slotted
  • Double Shear Strength (Lbs.): 250 lb
  • Material: Stainless Steel
  • Rockwell Hardness: Work Hardened
  • Material Grade/Class: 18-8
  • Product Type: Spring Pin

This Spring Pins is intended for professional buyers focused on durability and uptime.

Recommended for maintenance and repair workflows and intended for professional buyers focused on durability and uptime.

Highlights

  • Designed for professional use where predictable fit and handling are important.
  • Works well in standardized part lists and preventative maintenance schedules.
  • Clear specification formatting helps reduce ordering mistakes.
  • Organized for straightforward purchasing and stocking.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
