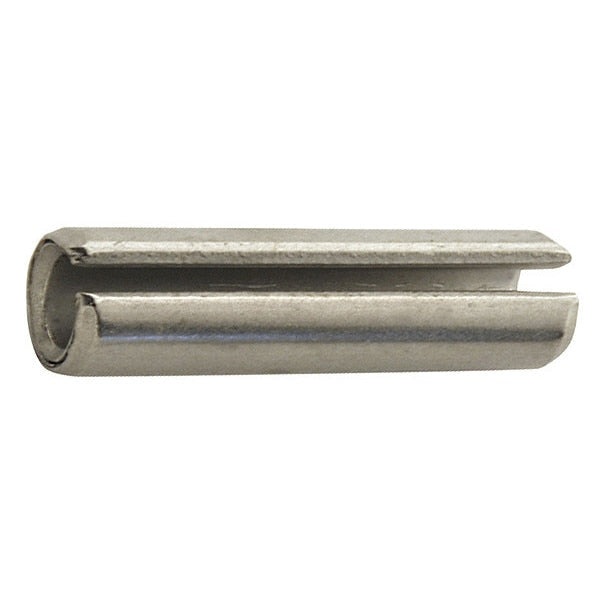

Spring Pin, Slot, 1/4x3 L, PK10

CONTRACTOR SELECT — Spring Pins — Spring Pin, Slot, 1/4x3 L, PK10

A practical Spring Pins by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• Standards: ASME B18.8.2
• Overall Length: 3"
• Manufacturer Part Number: 5BY73
• UPC: -

Product information

• Manufacturer Part Number: 5BY73
• UPC: -
• Country of Origin: United States

Dimensions

• Shank Length Tolerance: +/-0.025 in
• Outside Diameter Tolerance: +/-0.003 in
• Usable Length: 3 in
• Fits Minimum Hole Diameter: 1/4 in
• Maximum Chamfer Length: 0.065 in
• Outside Dia.: 1/4 in
• Fastener Length: 3 in
• Actual Dia. (Min.-Max): 0.258-0.264 in
• Length Tolerance: +/-0.025 in
• Nominal Diameter: 1/4 in
• Chamfer Diameter: 0.245 in
• Chamfer Length (Max.): 0.065 in
• Chamfer Length (Min.): 0.012 in
• Overall Length: 3"
• Wall Thickness: 0.048 in
• Fits Hole Dia. (Min.-Max.): 0.250-0.256 in
• Minimum Chamfer Length: 0.012 in
• Shank Length: 3 in
• Fits Maximum Hole Diameter: 1/4 in
• Pin Diameter: 1/4 in

Details

• Rockwell Hardness: Work Hardened
• Standards: ASME B18.8.2
• Finish: Plain
• Double Shear Strength (Lbs.): 4,100 lb
• Type: Slotted
• Material: Stainless Steel
• Item: Slotted Spring Pin, 1/4" dia,3" L,Slotted,PK10
• Meets: ANSI/ASME B18.8.2

This Spring Pins is chosen for predictable fit and professional handling.

Recommended for planned maintenance programs and designed to support reliable operation in demanding environments.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
