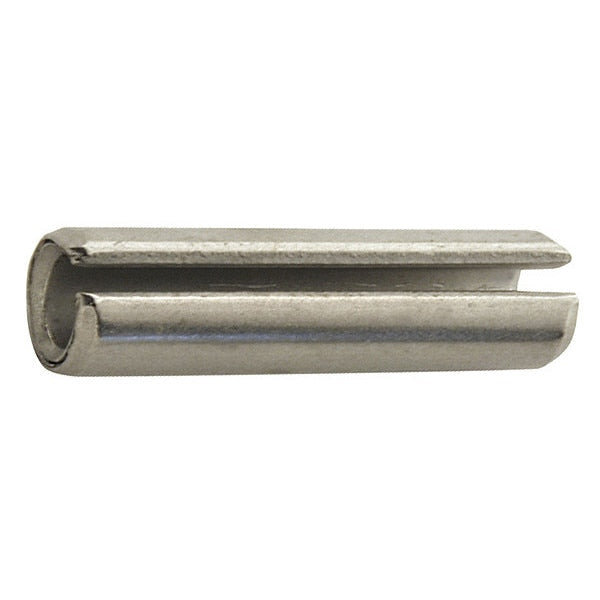

Spring Pin, Slot, 1/8x1/2 L, Pk100

CONTRACTOR SELECT — Spring Pins — Spring Pin, Slot, 1/8x1/2 L, Pk100

CONTRACTOR SELECT Spring Pins built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• Standards: ASME B18.8.2
• Overall Length: 1/2"
• Manufacturer Part Number: 5BY12
• UPC: -

Product information

• Manufacturer Part Number: 5BY12
• UPC: -
• Country of Origin: United States

Dimensions

• Overall Length: 1/2"
• Chamfer Length (Max.): 0.044 in
• Chamfer Diameter: 0.122 in
• Nominal Diameter: 1/8 in
• Wall Thickness: 0.028 in
• Actual Dia. (Min.-Max): 0.131-0.135 in
• Shank Length Tolerance: +/-0.015 in
• Maximum Chamfer Length: 0.044 in
• Shank Length: 1/2 in
• Fits Minimum Hole Diameter: 1/8 in
• Minimum Chamfer Length: 0.008 in
• Outside Diameter Tolerance: +/-0.002 in
• Usable Length: 1/2 in
• Pin Diameter: 1/8 in
• Fits Maximum Hole Diameter: 1/8 in
• Outside Dia.: 1/8 in
• Fastener Length: 1/2 in
• Length Tolerance: +/-0.015 in
• Chamfer Length (Min.): 0.008 in
• Fits Hole Dia. (Min.-Max.): 0.125-0.129 in

Details

• Type: Slotted
• Finish: Plain
• Item: Slotted Spring Pin, 1/8" dia,1/2" L,Slotted,PK100
• Double Shear Strength (Lbs.): 1,090 lb
• Meets: ANSI/ASME B18.8.2
• Rockwell Hardness: Work Hardened
• Material: Stainless Steel
• Pack Size: Small Pack
• Product Type: Spring Pin
• Standards: ASME B18.8.2

This Spring Pins is intended for professional buyers focused on durability and uptime.

Recommended for inventory replenishment and standardization and selected for dependable day-to-day use.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
