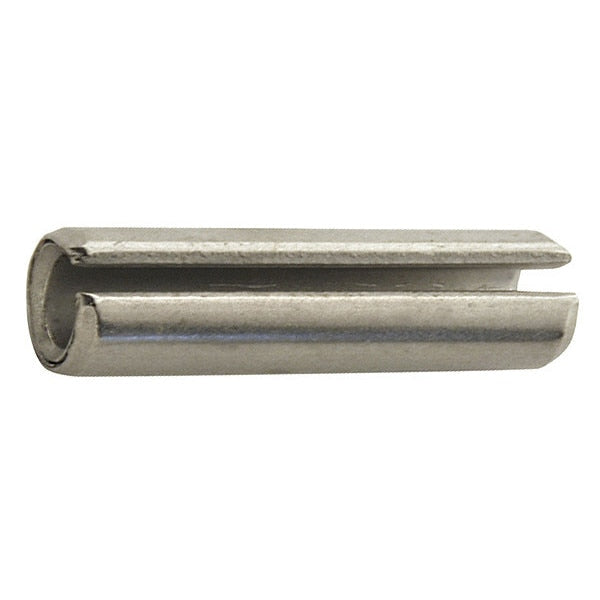

Spring Pin, Slot, 1x5/32 L, Pk100

CONTRACTOR SELECT — Spring Pins — Spring Pin, Slot, 1x5/32 L, Pk100

A practical Spring Pins by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• Standards: ASME B18.8.2
• Overall Length: 1"
• Manufacturer Part Number: 5BY29
• UPC: -

Product information

• Manufacturer Part Number: 5BY29
• UPC: -
• Country of Origin: United States

Dimensions

• Minimum Chamfer Length: 0.01 in
• Outside Diameter Tolerance: +/-0.0025 in
• Shank Length: 1 in
• Shank Length Tolerance: +/-0.015 in
• Usable Length: 1 in
• Outside Dia.: 5/32 in
• Fastener Length: 1 in
• Fits Hole Dia. (Min.-Max.): 0.156-0.160 in
• Wall Thickness: 0.032 in
• Chamfer Diameter: 0.0151 in
• Overall Length: 1"
• Length Tolerance: +/-0.015 in
• Chamfer Length (Min.): 0.01 in
• Nominal Diameter: 5/32 in
• Actual Dia. (Min.-Max): 0.162-0.167 in
• Chamfer Length (Max.): 0.048 in
• Fits Maximum Hole Diameter: 5/32 in
• Maximum Chamfer Length: 0.048 in
• Fits Minimum Hole Diameter: 5/32 in
• Pin Diameter: 5/32 in

Details

• Finish: Plain
• Material: Stainless Steel
• Double Shear Strength (Lbs.): 1,600 lb
• Item: Slotted Spring Pin, 5/32" dia,1" L,Slotted,PK100
• Meets: ANSI/ASME B18.8.2
• Standards: ASME B18.8.2
• Rockwell Hardness: Work Hardened
• Type: Slotted

This Spring Pins is chosen for predictable fit and professional handling.

Recommended for field service tasks and on-site replacement and intended for professional buyers focused on durability and uptime.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
