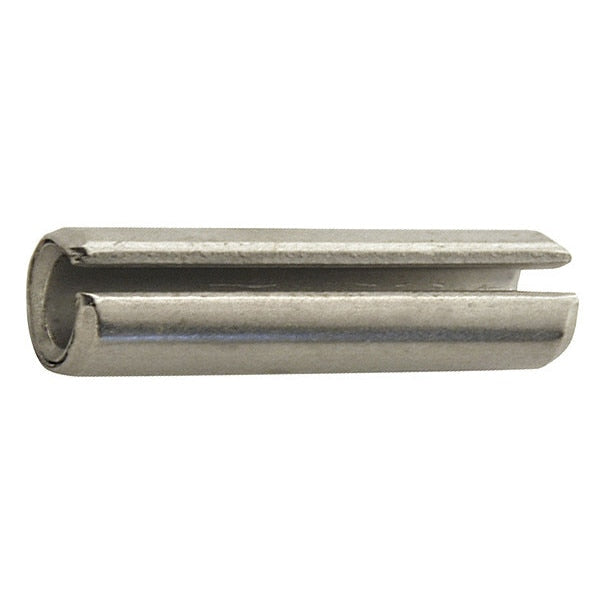

Spring Pin, Slot, 3/16 x 1 L, Pk100

CONTRACTOR SELECT — Spring Pins — Spring Pin, Slot, 3/16 x 1 L, Pk100

CONTRACTOR SELECT Spring Pins built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• Standards: ASME B18.8.2
• Overall Length: 1"
• Manufacturer Part Number: 5BY42
• UPC: -

Product information

• Manufacturer Part Number: 5BY42
• UPC: -
• Country of Origin: United States

Dimensions

• Minimum Chamfer Length: 0.011 in
• Fits Minimum Hole Diameter: 3/16 in
• Shank Length: 1 in
• Maximum Chamfer Length: 0.055 in
• Fits Maximum Hole Diameter: 3/16 in
• Usable Length: 1 in
• Outside Dia.: 3/16 in
• Fastener Length: 1 in
• Wall Thickness: 0.04 in
• Nominal Diameter: 3/16 in
• Length Tolerance: +/-0.015 in
• Fits Hole Dia. (Min.-Max.): 0.187-0.192 in
• Overall Length: 1"
• Chamfer Length (Min.): 0.011 in
• Chamfer Length (Max.): 0.055 in
• Actual Dia. (Min.-Max): 0.194-0.199 in
• Chamfer Diameter: 0.182 in
• Shank Length Tolerance: +/-0.015 in
• Outside Diameter Tolerance: +/-0.0025 in
• Pin Diameter: 3/16 in

Details

• Meets: ANSI/ASME B18.8.2
• Type: Slotted
• Finish: Plain
• Rockwell Hardness: Work Hardened
• Material: Stainless Steel
• Standards: ASME B18.8.2
• Item: Slotted Spring Pin, 3/16" dia,1" L,Slotted,PK100
• Double Shear Strength (Lbs.): 2,425 lb

This Spring Pins is selected for dependable day-to-day use.

Recommended for maintenance and repair workflows and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
