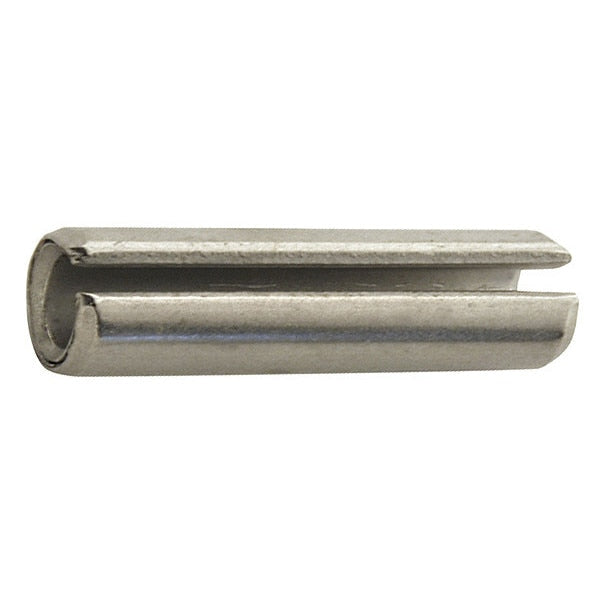

Spring Pin, Slot, 3/16x1 1/2 L, Pk50

Spring Pin, Slot, 3/16x1 1/2 L, Pk50

by CONTRACTOR SELECT
$8.70 - $8.70
$8.70
$18.90
$18.90 - $18.90
$18.90

CONTRACTOR SELECT — Spring Pins — Spring Pin, Slot, 3/16x1 1/2 L, Pk50

CONTRACTOR SELECT Spring Pins built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

  • Material: Stainless Steel
  • Finish: Plain
  • Standards: ASME B18.8.2
  • Overall Length: 1-1/2"
  • Manufacturer Part Number: 5BY45
  • UPC: -

Product information

  • UPC: -
  • Country of Origin: United States
  • Manufacturer Part Number: 5BY45

Dimensions

  • Fits Hole Dia. (Min.-Max.): 0.187-0.192 in
  • Chamfer Diameter: 0.182 in
  • Nominal Diameter: 3/16 in
  • Chamfer Length (Max.): 0.055 in
  • Maximum Chamfer Length: 0.055 in
  • Fits Minimum Hole Diameter: 3/16 in
  • Minimum Chamfer Length: 0.011 in
  • Outside Diameter Tolerance: +/-0.0025 in
  • Fits Maximum Hole Diameter: 3/16 in
  • Pin Diameter: 3/16 in
  • Usable Length: 1 1/2 in
  • Shank Length: 1 1/2 in
  • Shank Length Tolerance: +/-0.020 in
  • Outside Dia.: 3/16 in
  • Fastener Length: 1 1/2 in
  • Length Tolerance: +/-0.020 in
  • Chamfer Length (Min.): 0.011 in
  • Wall Thickness: 0.04 in
  • Actual Dia. (Min.-Max): 0.194-0.199 in
  • Overall Length: 1-1/2"

Details

  • Finish: Plain
  • Meets: ANSI/ASME B18.8.2
  • Double Shear Strength (Lbs.): 2,425 lb
  • Item: Slotted Spring Pin, 3/16" dia,1 1/2" L,PK50
  • Rockwell Hardness: Work Hardened
  • Manufacturer Location: Made in USA*
  • Pack Size: Small Pack
  • Standards: ASME B18.8.2
  • Type: Slotted
  • Material: Stainless Steel

This Spring Pins is selected for dependable day-to-day use.

Recommended for field service tasks and on-site replacement and chosen for predictable fit and professional handling.

Highlights

  • Suitable for maintenance, repair, and project-based procurement.
  • Helps keep specifications consistent across replacements and replenishment cycles.
  • Designed for professional use where predictable fit and handling are important.
  • Works well in standardized part lists and preventative maintenance schedules.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
