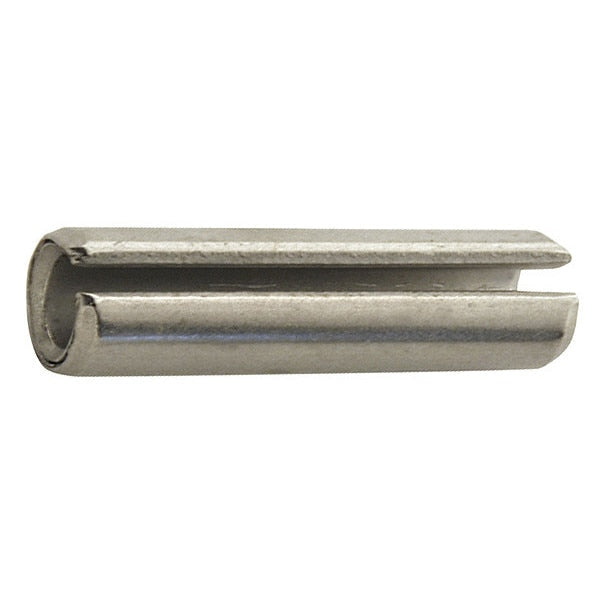

Spring Pin, Slot, 302SS, 1/4x1 L, Pk50

CONTRACTOR SELECT — Spring Pins — Spring Pin, Slot, 302SS, 1/4x1 L, Pk50

CONTRACTOR SELECT Spring Pins built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• Standards: ASME B18.8.2
• Overall Length: 1"
• Manufacturer Part Number: 5BY63
• UPC: -

Product information

• UPC: -
• Country of Origin: United States
• Manufacturer Part Number: 5BY63

Dimensions

• Fastener Length: 1 in
• Wall Thickness: 0.048 in
• Actual Dia. (Min.-Max): 0.258-0.264 in
• Overall Length: 1"
• Length Tolerance: +/-0.015 in
• Nominal Diameter: 1/4 in
• Chamfer Length (Max.): 0.065 in
• Chamfer Diameter: 0.245 in
• Chamfer Length (Min.): 0.012 in
• Fits Hole Dia. (Min.-Max.): 0.250-0.256 in
• Shank Length Tolerance: +/-0.015 in
• Fits Minimum Hole Diameter: 1/4 in
• Pin Diameter: 1/4 in
• Usable Length: 1 in
• Shank Length: 1 in
• Minimum Chamfer Length: 0.012 in
• Fits Maximum Hole Diameter: 1/4 in
• Outside Diameter Tolerance: +/-0.003 in
• Maximum Chamfer Length: 0.065 in
• Outside Dia.: 1/4 in

Details

• Type: Slotted
• Material: Stainless Steel
• Finish: Plain
• Double Shear Strength (Lbs.): 4,100 lb
• Rockwell Hardness: Work Hardened
• Standards: ASME B18.8.2
• Meets: ANSI/ASME B18.8.2
• Item: Slotted Spring Pin, 1/4" dia,1" L,Slotted,PK50

This Spring Pins is chosen for predictable fit and professional handling.

Recommended for facility operations and routine servicing and selected for dependable day-to-day use.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
