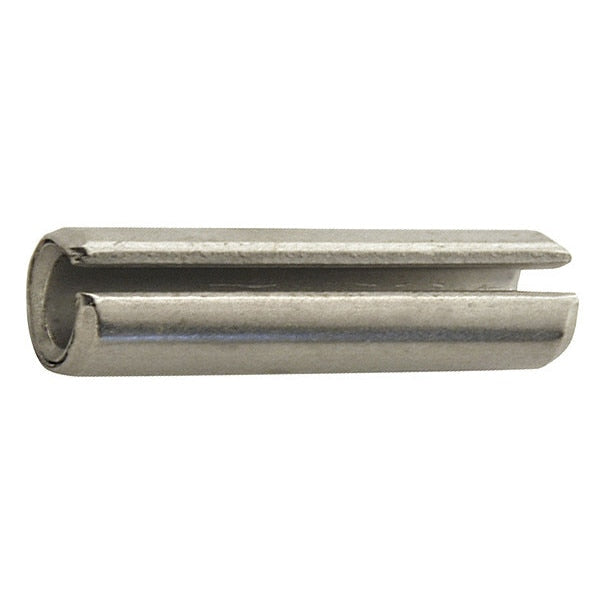

Spring Pin, Slot, 5/16x5/64 L, Pk100

CONTRACTOR SELECT — Spring Pins — Spring Pin, Slot, 5/16x5/64 L, Pk100

CONTRACTOR SELECT Spring Pins built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• Fastener Finish: Passivated
• Overall Length: 5/16"
• Manufacturer Part Number: 5BU77
• UPC: -

Product information

• Manufacturer Part Number: 5BU77
• UPC: -
• Country of Origin: United States

Dimensions

• Overall Length: 5/16"
• Wall Thickness: 0.018 in
• Chamfer Diameter: 0.075 in
• Actual Dia. (Min.-Max): 0.083-0.086 in
• Chamfer Length (Min.): 0.008 in
• Length Tolerance: +/-0.015 in
• Pin Diameter: 5/64 in
• Usable Length: 5/16 in
• Fits Maximum Hole Diameter: 5/64 in
• Maximum Chamfer Length: 0.032 in
• Shank Length Tolerance: +/-0.015 in
• Minimum Chamfer Length: 0.008 in
• Fits Minimum Hole Diameter: 5/64 in
• Shank Length: 5/16 in
• Outside Diameter Tolerance: +/-0.0015 in
• Outside Dia.: 5/64 in
• Fastener Length: 5/16 in
• Chamfer Length (Max.): 0.032 in
• Nominal Diameter: 5/64 in
• Fits Hole Dia. (Min.-Max.): 0.078-0.081 in

Details

• Finish: Plain
• Type: Slotted
• Item: Slotted Spring Pin, 5/64" dia,5/16" L,PK100
• Double Shear Strength (Lbs.): 460 lb
• Material: Stainless Steel
• Material Quality Standards: AISI-1070, AISI-1080
• Fastener Finish: Passivated
• Standards: ASME B18.8.2
• Meets: ANSI/ASME B18.8.2
• Rockwell Hardness: Work Hardened

This Spring Pins is designed to support reliable operation in demanding environments.

Recommended for maintenance and repair workflows and a practical option for maintenance teams and procurement.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
