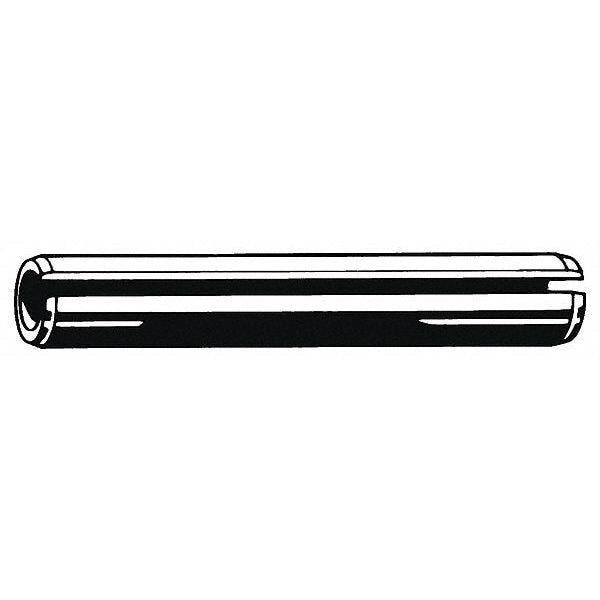

Spring Pin, Sltd, 1/16x11/16in, 430lb, PK100

CONTRACTOR SELECT — Spring Pins — Spring Pin, Sltd, 1/16x11/16in, 430lb, PK100

A practical Spring Pins by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Steel
• Finish: Zinc Plated
• Material Grade: Spring Steel
• Overall Length: 11/16"
• Manufacturer Part Number: U39101.006.0068
• UPC: -

Product information

• UPC: -
• Country of Origin: Multiple
• Manufacturer Part Number: U39101.006.0068

Dimensions

• Pin Diameter: 1/16 in
• Shank Length Tolerance: +0.014/-0.016 in
• Outside Dia.: 1/16 in
• Fastener Length: 11/16 in
• Chamfer Length (Min.): 0.007 in
• Fits Hole Dia. (Min.-Max.): 0.062-0.065 in
• Nominal Diameter: 1/16 in
• Chamfer Length (Max.): 0.028 in
• Actual Dia. (Min.-Max): 0.066-0.069 in
• Overall Length: 11/16"
• Wall Thickness: 0.012 in
• Chamfer Diameter: 0.059 in
• Outside Diameter Tolerance: +/-0.003 in
• Fits Maximum Hole Diameter: 1/16 in
• Fits Minimum Hole Diameter: 1/16 in
• Shank Length: 11/16 in
• Maximum Chamfer Length: 0.028 in
• Minimum Chamfer Length: 0.007 in
• Usable Length: 11/16 in

Details

• Fastener Finish: Zinc Plated
• Standards: ASME B18.8.2
• Meets: ASME B18.8.2
• Finish: Zinc Plated
• Type: Slotted
• Double Shear Strength (Lbs.): 430 lb
• Item: Slotted Spring Pin, 1/16" dia,11/16" L,PK100
• Material: Steel
• Rockwell Hardness: HV 458-560
• Manufacturer Location: Globally Sourced
• Product Type: Spring Pin
• Material Grade: Spring Steel

This Spring Pins is well-suited for replacement, upgrade, and stock-room use.

Recommended for inventory replenishment and standardization and selected for dependable day-to-day use.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
