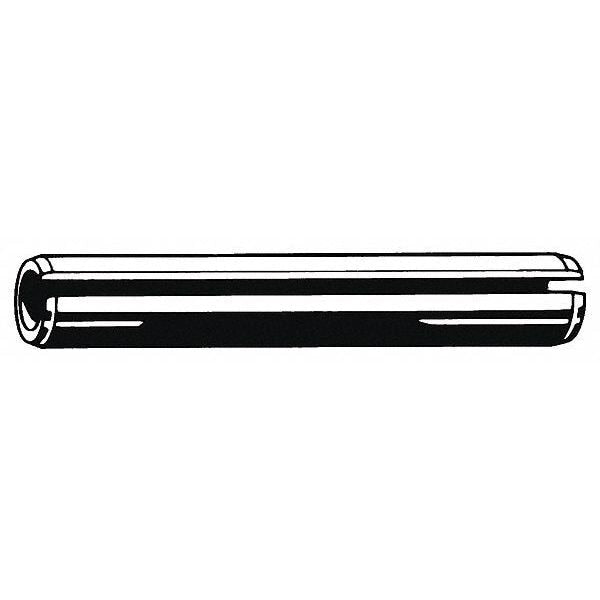

Spring Pin, Sltd, 1/4inx1in, Pln, PK50

CONTRACTOR SELECT — Spring Pins — Spring Pin, Sltd, 1/4inx1in, Pln, PK50

Designed for professional use, this CONTRACTOR SELECT Spring Pins helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Steel
• Finish: Plain
• Spring Pin Type: Slotted
• Overall Length: 1"
• Manufacturer Part Number: U39100.025.0100
• UPC: -

Product information

• Manufacturer Part Number: U39100.025.0100
• UPC: -
• Country of Origin: Multiple

Dimensions

• Usable Length: 1 in
• Maximum Chamfer Length: 0.065 in
• Fits Minimum Hole Diameter: 1/4 in
• Shank Length: 1 in
• Minimum Chamfer Length: 0.012 in
• Pin Diameter: 1/4 in
• Outside Dia.: 1/4 in
• Fastener Length: 1 in
• Chamfer Length (Max.): 0.065 in
• Fits Hole Dia. (Min.-Max.): 0.250-0.256 in
• Overall Length: 1"
• Chamfer Length (Min.): 0.012 in
• Nominal Diameter: 1/4 in
• Wall Thickness: 0.048 in
• Chamfer Diameter: 0.245 in
• Actual Dia. (Min.-Max): 0.258-0.264 in
• Fits Maximum Hole Diameter: 1/4 in

Details

• Fastener Finish: Plain
• Standards: ASME B18.8.2
• Double Shear Strength (Lbs.): 7,050 lb
• Finish: Plain
• Meets: ASME B18.8.2
• Item: Slotted Spring Pin, 0.25" dia,1" L,Slotted,PK50
• Type: Slotted
• Material: Steel
• Product Type: Spring Pin
• Material Grade/Class: Ungraded
• Manufacturer Location: Globally Sourced
• Spring Pin Type: Slotted
• Basic Material: Steel
• Material Grade: Spring Steel

This Spring Pins is selected for dependable day-to-day use.

Recommended for facility operations and routine servicing and designed to support reliable operation in demanding environments.

Highlights

• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
