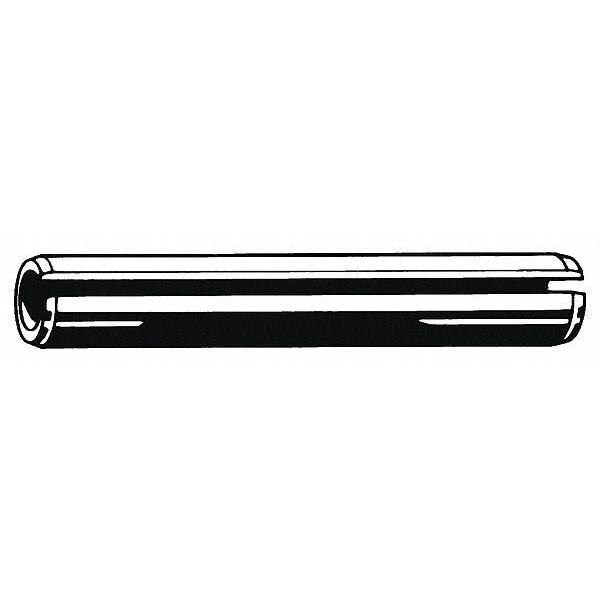

Spring Pin, Sltd, 1/8inx1in, Pln, PK100

CONTRACTOR SELECT — Spring Pins — Spring Pin, Sltd, 1/8inx1in, Pln, PK100

Designed for professional use, this CONTRACTOR SELECT Spring Pins helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Steel
• Finish: Plain
• Spring Pin Type: Slotted
• Overall Length: 1"
• Manufacturer Part Number: U39100.012.0100
• UPC: -

Product information

• Country of Origin: Multiple
• Manufacturer Part Number: U39100.012.0100
• UPC: -

Dimensions

• Usable Length: 1 in
• Outside Dia.: 1/8 in
• Fastener Length: 1 in
• Nominal Diameter: 1/8 in
• Fits Hole Dia. (Min.-Max.): 0.125-0.129 in
• Actual Dia. (Min.-Max): 0.131-0.135 in
• Chamfer Diameter: 0.122 in
• Chamfer Length (Min.): 0.008 in
• Chamfer Length (Max.): 0.044 in
• Wall Thickness: 0.028 in
• Overall Length: 1"
• Fits Minimum Hole Diameter: 1/8 in
• Pin Diameter: 1/8 in
• Minimum Chamfer Length: 0.008 in
• Fits Maximum Hole Diameter: 1/8 in
• Maximum Chamfer Length: 0.044 in
• Shank Length: 1 in

Details

• Item: Slotted Spring Pin, 0.125" dia,1" L,Slotted,PK100
• Finish: Plain
• Meets: ASME B18.8.2
• Double Shear Strength (Lbs.): 1,875 lb
• Material: Steel
• Material Grade/Class: Ungraded
• Product Type: Spring Pin
• End Type: Chamfered
• Spring Pin Type: Slotted
• Basic Material: Steel
• Material Grade: Spring Steel
• Fastener Finish: Plain
• Standards: ASME B18.8.2
• Type: Slotted

This Spring Pins is chosen for predictable fit and professional handling.

Recommended for field service tasks and on-site replacement and intended for professional buyers focused on durability and uptime.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
