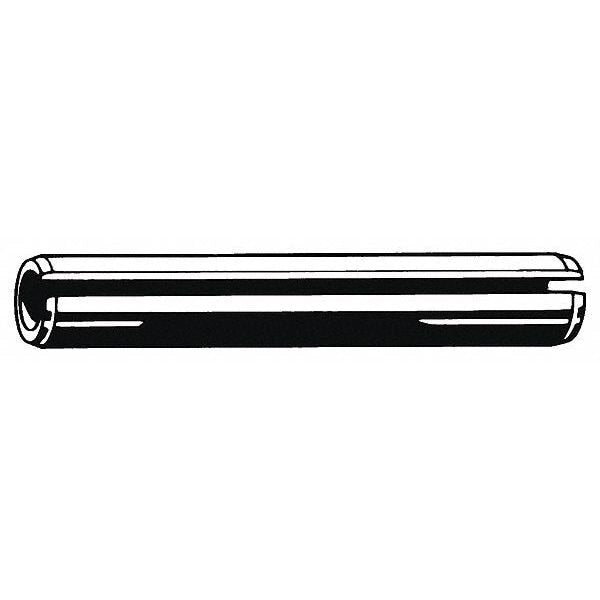

Spring Pin, Sltd, 3/32inx1/4in, Pln, PK100

CONTRACTOR SELECT — Spring Pins — Spring Pin, Sltd, 3/32inx1/4in, Pln, PK100

This Spring Pins from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Material: Steel
• Finish: Plain
• Spring Pin Type: Slotted
• Overall Length: 1/4"
• Manufacturer Part Number: U39100.009.0025
• UPC: -

Product information

• Country of Origin: Multiple
• Manufacturer Part Number: U39100.009.0025
• UPC: -

Dimensions

• Nominal Diameter: 3/32 in
• Overall Length: 1/4"
• Chamfer Length (Min.): 0.008 in
• Fits Hole Dia. (Min.-Max.): 0.094-0.097 in
• Chamfer Length (Max.): 0.038 in
• Chamfer Diameter: 0.091 in
• Minimum Chamfer Length: 0.008 in
• Usable Length: 1/4 in
• Fits Maximum Hole Diameter: 3/32 in
• Maximum Chamfer Length: 0.038 in
• Shank Length: 1/4 in
• Fits Minimum Hole Diameter: 3/32 in
• Pin Diameter: 3/32 in
• Outside Dia.: 3/32 in
• Fastener Length: 1/4 in
• Actual Dia. (Min.-Max): 0.099-0.103 in
• Wall Thickness: 0.022 in

Details

• Material Grade: Spring Steel
• Fastener Finish: Plain
• Standards: ASME B18.8.2
• Meets: ASME B18.8.2
• Double Shear Strength (Lbs.): 1,150 lb
• Item: Slotted Spring Pin, 3/32" dia,1/4" L,PK100
• Type: Slotted
• Material: Steel
• Finish: Plain
• Manufacturer Location: Globally Sourced
• Product Type: Spring Pin
• End Type: Chamfered
• Spring Pin Type: Slotted
• Basic Material: Steel

This Spring Pins is selected for dependable day-to-day use.

Recommended for planned maintenance programs and a practical option for maintenance teams and procurement.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
