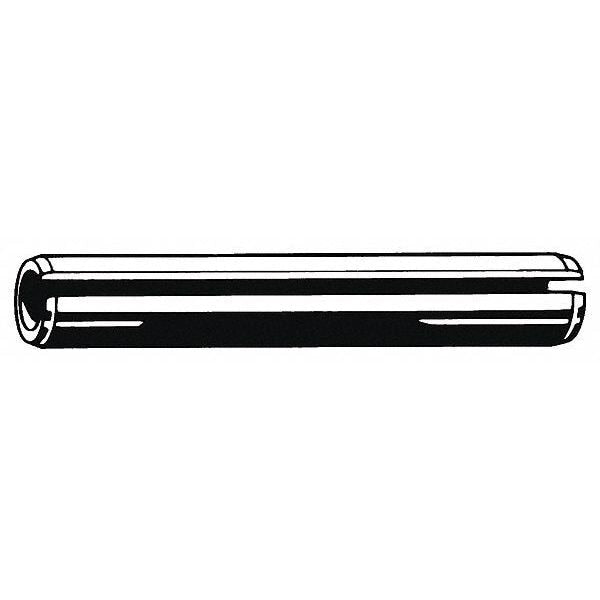

Spring Pin, Sltd, 3/32inx1in, 1150lb, PK100

CONTRACTOR SELECT — Spring Pins — Spring Pin, Sltd, 3/32inx1in, 1150lb, PK100

This Spring Pins from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Material: Stainless Steel
• Finish: Plain
• Material Grade: 420
• Overall Length: 1"
• Manufacturer Part Number: U51428.009.0100
• UPC: -

Product information

• UPC: -
• Country of Origin: Multiple
• Manufacturer Part Number: U51428.009.0100

Dimensions

• Fits Maximum Hole Diameter: 3/32 in
• Outside Dia.: 3/32 in
• Fastener Length: 1 in
• Fits Hole Dia. (Min.-Max.): 0.094-0.097 in
• Actual Dia. (Min.-Max): 0.099-0.103 in
• Overall Length: 1"
• Chamfer Length (Max.): 0.038 in
• Chamfer Diameter: 0.091 in
• Wall Thickness: 0.022 in
• Nominal Diameter: 3/32 in
• Chamfer Length (Min.): 0.008 in
• Maximum Chamfer Length: 0.038 in
• Fits Minimum Hole Diameter: 3/32 in
• Usable Length: 1 in
• Shank Length: 1 in
• Shank Length Tolerance: +/-0.015 in
• Outside Diameter Tolerance: +/-0.004 in
• Pin Diameter: 3/32 in
• Minimum Chamfer Length: 0.008 in

Details

• Double Shear Strength (Lbs.): 1,150 lb
• Finish: Plain
• Rockwell Hardness: HV 423-544
• Material Grade/Class: 420
• Dimensional Standards: ASME B18.8.2
• Product Type: Spring Pin
• Material Grade: 420
• Standards: ASME B18.8.2
• Type: Slotted
• Meets: ASME B18.8.2
• Material: Stainless Steel
• Item: Slotted Spring Pin, 3/32" dia,1" L,Slotted,PK100

This Spring Pins is designed to support reliable operation in demanding environments.

Recommended for inventory replenishment and standardization and selected for dependable day-to-day use.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
