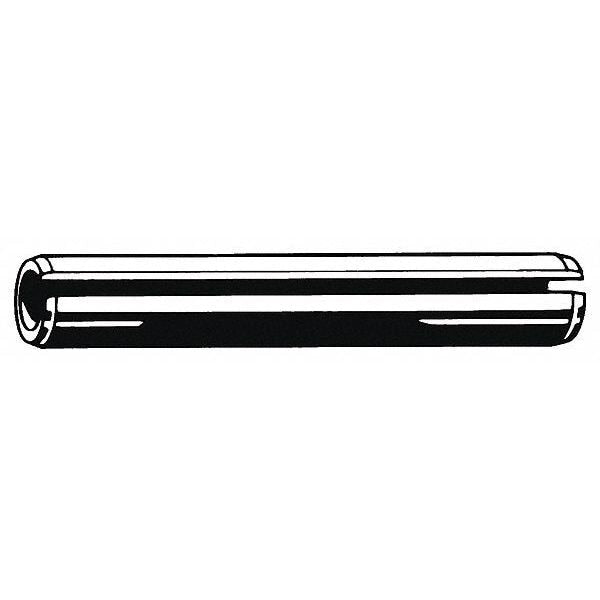

Spring Pin, Sltd, 5/16inx1in, Pln, PK25

CONTRACTOR SELECT — Spring Pins — Spring Pin, Sltd, 5/16inx1in, Pln, PK25

CONTRACTOR SELECT Spring Pins built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Steel
• Finish: Plain
• Spring Pin Type: Slotted
• Overall Length: 1"
• Manufacturer Part Number: U39100.031.0100
• UPC: -

Product information

• UPC: -
• Country of Origin: Multiple
• Manufacturer Part Number: U39100.031.0100

Dimensions

• Minimum Chamfer Length: 0.014 in
• Fits Minimum Hole Diameter: 5/16 in
• Maximum Chamfer Length: 0.08 in
• Shank Length: 1 in
• Fits Maximum Hole Diameter: 5/16 in
• Usable Length: 1 in
• Pin Diameter: 5/16 in
• Outside Dia.: 5/16 in
• Fastener Length: 1 in
• Chamfer Length (Max.): 0.08 in
• Chamfer Length (Min.): 0.014 in
• Chamfer Diameter: 0.306 in
• Actual Dia. (Min.-Max): 0.321-0.330 in
• Fits Hole Dia. (Min.-Max.): 0.312-0.318 in
• Nominal Diameter: 5/16 in
• Wall Thickness: 0.062 in
• Overall Length: 1"

Details

• Standards: ASME B18.8.2
• Type: Slotted
• Material: Steel
• Item: Slotted Spring Pin, 0.3125" dia,1" L,Slotted,PK25
• Finish: Plain
• Meets: ASME B18.8.2
• Double Shear Strength (Lbs.): 10,800 lb
• Pin Type: Slotted
• End Type: Chamfered
• Product Type: Spring Pin
• Spring Pin Type: Slotted
• Basic Material: Steel
• Material Grade: Spring Steel
• Fastener Finish: Plain

This Spring Pins is chosen for predictable fit and professional handling.

Recommended for inventory replenishment and standardization and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
