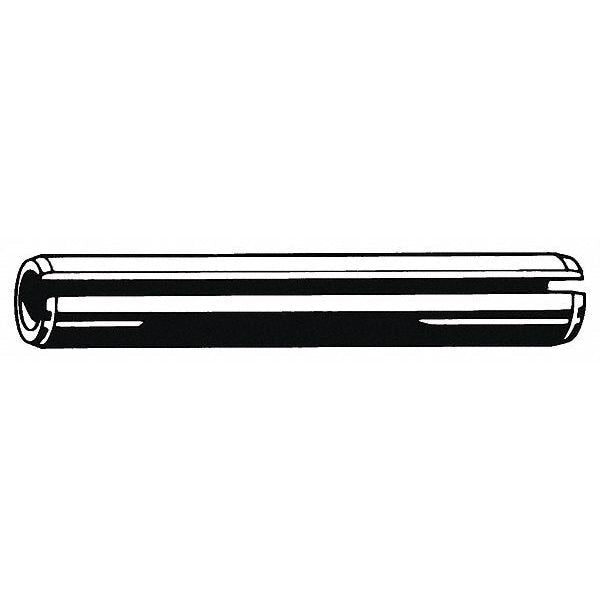

Spring Pin, Sltd, 5/64inx3/4in, Pln, PK100

CONTRACTOR SELECT — Spring Pins — Spring Pin, Sltd, 5/64inx3/4in, Pln, PK100

CONTRACTOR SELECT Spring Pins built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Steel
• Finish: Plain
• Spring Pin Type: Slotted
• Overall Length: 3/4"
• Manufacturer Part Number: U39100.007.0075
• UPC: -

Product information

• Country of Origin: Multiple
• Manufacturer Part Number: U39100.007.0075
• UPC: -

Dimensions

• Fits Minimum Hole Diameter: 5/64 in
• Minimum Chamfer Length: 0.008 in
• Usable Length: 3/4 in
• Outside Dia.: 5/64 in
• Fastener Length: 3/4 in
• Chamfer Diameter: 0.075 in
• Fits Hole Dia. (Min.-Max.): 0.078-0.081 in
• Chamfer Length (Min.): 0.008 in
• Actual Dia. (Min.-Max): 0.083-0.086 in
• Nominal Diameter: 5/64 in
• Wall Thickness: 0.018 in
• Chamfer Length (Max.): 0.032 in
• Overall Length: 3/4"
• Pin Diameter: 5/64 in
• Shank Length: 3/4 in
• Fits Maximum Hole Diameter: 5/64 in
• Maximum Chamfer Length: 0.032 in

Details

• Finish: Plain
• Type: Slotted
• Meets: ASME B18.8.2
• Item: Slotted Spring Pin, 0.078125" dia,3/4" L,PK100
• Material Grade/Class: Ungraded
• Manufacturer Location: Globally Sourced
• Pin Type: Slotted
• Spring Pin Type: Slotted
• Basic Material: Steel
• Material Grade: Spring Steel
• Fastener Finish: Plain
• Standards: ASME B18.8.2
• Double Shear Strength (Lbs.): 800 lb
• Material: Steel

This Spring Pins is well-suited for replacement, upgrade, and stock-room use.

Recommended for inventory replenishment and standardization and selected for dependable day-to-day use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
