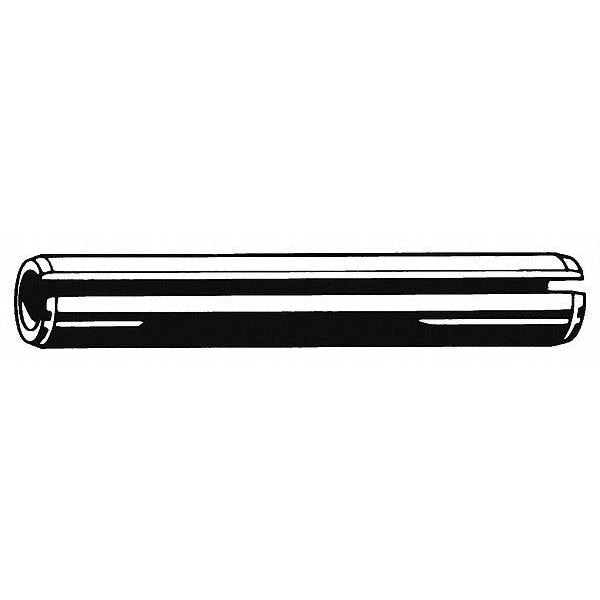

Spring Pin, Sltd, 7/32inx1-1/2in, Pln, PK25

CONTRACTOR SELECT — Spring Pins — Spring Pin, Sltd, 7/32inx1-1/2in, Pln, PK25

A practical Spring Pins by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Steel
• Finish: Plain
• Spring Pin Type: Slotted
• Overall Length: 1-1/2"
• Manufacturer Part Number: U39100.021.0150
• UPC: -

Product information

• Manufacturer Part Number: U39100.021.0150
• UPC: -
• Country of Origin: Multiple

Dimensions

• Wall Thickness: 0.048 in
• Nominal Diameter: 7/32 in
• Fits Minimum Hole Diameter: 7/32 in
• Maximum Chamfer Length: 0.065 in
• Fits Maximum Hole Diameter: 7/32 in
• Shank Length: 1 1/2 in
• Pin Diameter: 7/32 in
• Minimum Chamfer Length: 0.011 in
• Usable Length: 1 1/2 in
• Outside Dia.: 7/32 in
• Fastener Length: 1 1/2 in
• Fits Hole Dia. (Min.-Max.): 0.219-0.224 in
• Chamfer Diameter: 0.214 in
• Actual Dia. (Min.-Max): 0.226-0.232 in
• Overall Length: 1-1/2"
• Chamfer Length (Min.): 0.011 in
• Chamfer Length (Max.): 0.065 in

Details

• End Type: Chamfered
• Pin Type: Slotted
• Material Grade/Class: Ungraded
• Spring Pin Type: Slotted
• Basic Material: Steel
• Material Grade: Spring Steel
• Fastener Finish: Plain
• Standards: ASME B18.8.2
• Material: Steel
• Double Shear Strength (Lbs.): 5,850 lb
• Item: Slotted Spring Pin, 7/32" dia,1 1/2" L,PK25
• Meets: ASME B18.8.2
• Type: Slotted
• Finish: Plain

This Spring Pins is selected for dependable day-to-day use.

Recommended for maintenance and repair workflows and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
