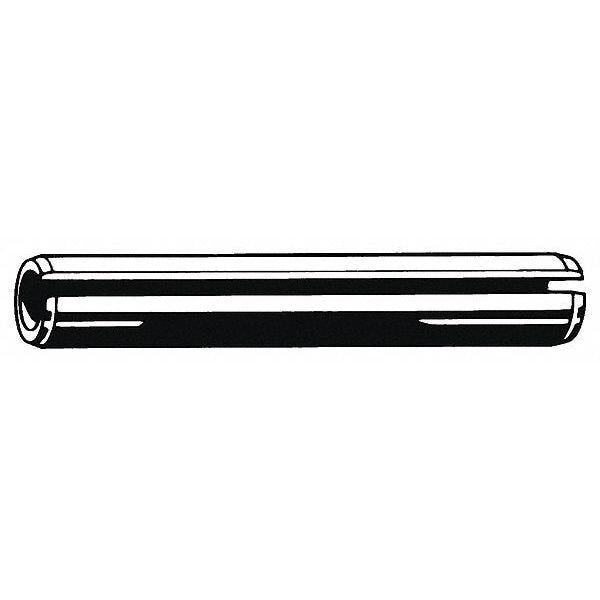

Spring Pin, Sltd, 7/32inx1in, Pln, PK50
Original price
$5.22
-
Original price
$5.22
Original price
$5.22
$11.34
$11.34
-
$11.34
Current price
$11.34
CONTRACTOR SELECT — Spring Pins — Spring Pin, Sltd, 7/32inx1in, Pln, PK50
Designed for professional use, this CONTRACTOR SELECT Spring Pins helps keep parts and tooling consistent across routine service tasks.
Quick specs
- Material: Steel
- Finish: Plain
- Spring Pin Type: Slotted
- Overall Length: 1"
- Manufacturer Part Number: U39100.021.0100
- UPC: -
Product information
- Country of Origin: Multiple
- Manufacturer Part Number: U39100.021.0100
- UPC: -
Dimensions
- Fits Maximum Hole Diameter: 7/32 in
- Maximum Chamfer Length: 0.065 in
- Shank Length: 1 in
- Pin Diameter: 7/32 in
- Usable Length: 1 in
- Fits Minimum Hole Diameter: 7/32 in
- Outside Dia.: 7/32 in
- Fastener Length: 1 in
- Overall Length: 1"
- Fits Hole Dia. (Min.-Max.): 0.219-0.224 in
- Nominal Diameter: 7/32 in
- Actual Dia. (Min.-Max): 0.226-0.232 in
- Chamfer Length (Min.): 0.011 in
- Chamfer Diameter: 0.214 in
- Chamfer Length (Max.): 0.065 in
- Wall Thickness: 0.048 in
- Minimum Chamfer Length: 0.011 in
Details
- Standards: ASME B18.8.2
- Item: Slotted Spring Pin, 7/32" dia,1" L,Slotted,PK50
- Double Shear Strength (Lbs.): 5,850 lb
- Material: Steel
- Finish: Plain
- Meets: ASME B18.8.2
- Type: Slotted
- Manufacturer Location: Globally Sourced
- Material Grade/Class: Ungraded
- Pin Type: Slotted
- Spring Pin Type: Slotted
- Basic Material: Steel
- Material Grade: Spring Steel
- Fastener Finish: Plain
This Spring Pins is well-suited for replacement, upgrade, and stock-room use.
Recommended for field service tasks and on-site replacement and selected for dependable day-to-day use.
Highlights
- Helps keep specifications consistent across replacements and replenishment cycles.
- Designed for professional use where predictable fit and handling are important.
- Works well in standardized part lists and preventative maintenance schedules.
- Clear specification formatting helps reduce ordering mistakes.
Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
