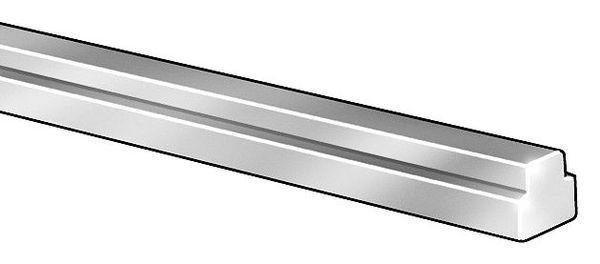

Step Key Stock 2, 1/2 in Top W, 1/4 in Top Step H, 5/8 in Bottom W, 5/16 in Lower Step H

CONTRACTOR SELECT — Step Key Stock 2, 1/2 in Top W, 1/4 in Top Step H, 5/8 in Bottom W, 5/16 in Lower Step H

CONTRACTOR SELECT Step Key Stock built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Medium Carbon Steel
• Finish: Zinc
• Grade: 1045
• Length: 12 in
• Manufacturer Part Number: WWGSK15-2
• UPC: -

Product information

• Manufacturer Part Number: WWGSK15-2
• UPC: -
• Country of Origin: United States

Dimensions

• Step Width: 0.5 in
• Step Height Tolerance: +/-0.005 in
• Overall Width: 0.625 in
• Step Width Tolerance: +0.000/-0.003 in
• Step Height: 0.25 in
• Top Width (In.): 1/2 in
• Top Step Height (In.): 1/4 in
• Bottom Width (In.): 5/8 in
• Lower Step Height (In.): 5/16 in
• Length: 12 in
• Dimension A: 1/2 in
• Dimension D: 5/16 in
• Dimension B: 1/4 in
• Length Tolerance: -0.125 in
• Dimension C: 5/8 in
• Overall Width Tolerance: +0.000/-0.003 in
• Base Height: 0.313 in

Details

• Key Shape: Step
• Pack Size: Small Pack
• Material Grade/Class: Grade 1018
• Made in North America: Yes
• Key Type: Step Key Type 2
• Type: 2
• Material: Medium Carbon Steel
• Finish: Zinc
• Tensile Strength (PSI): 64,000 psi
• Grade: 1045
• Application: For Mismarked Keyways, Gears, Shafts
• Rockwell Hardness: B85
• Standards: RoHS Compliant
• Tensile Strength: 64,000 psi

This Step Key Stock is chosen for predictable fit and professional handling.

Recommended for inventory replenishment and standardization and selected for dependable day-to-day use.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
