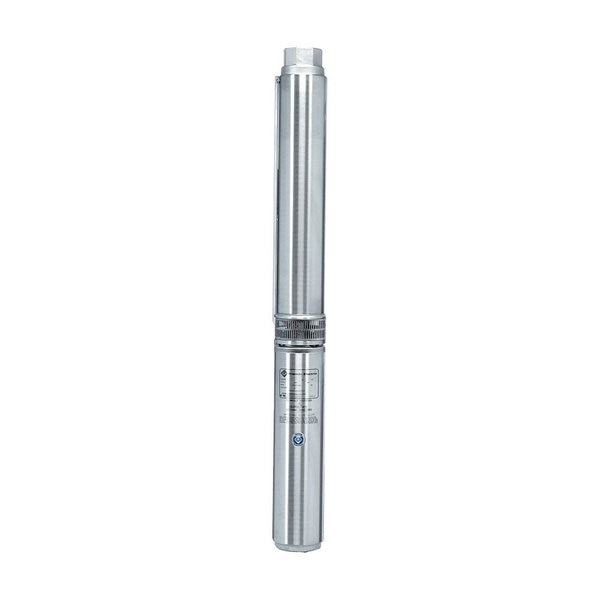

Submersible Pump

LITTLE GIANT PUMP — Deep Well Submersible Pumps — Submersible Pump

This Deep Well Submersible Pumps from LITTLE GIANT PUMP supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Item: Submersible Pump
• HP: 1/2 hp
• Number of Wires: 2
• Discharge Dia.: 1 1/4 in
• Manufacturer Part Number: 559159
• UPC: -

Product information

• Manufacturer Part Number: 559159
• UPC: -
• Country of Origin: Mexico

Dimensions

• Pump Diameter: 3.9 in
• Discharge Diameter: 1 1/4 in
• Discharge Dia.: 1 1/4 in
• Bore Diameter - Minimum: 4 in
• Manufacturer Warranty Length: 2 yr

Details

• Phase: Single
• Impeller Material: Acetal
• Max. Head: 244 ft
• Max. Operating Temp.: 120 Degrees F
• Application: Ground Water Extraction
• Horsepower: 1/2 hp
• Number of Speeds: 1
• Discharge Gender: Female
• Media Temperature - Maximum: 120 Degrees F
• NSF Certifications for Food and Drinking Water: NSF 61
• Requires Control Panel: No Control Panel Required
• Media Temperature - Minimum: 33 Degrees F
• Frequency: 60 Hz
• Pump Technology: Centrifugal
• Priming: Self-Priming
• Series: W12G05S5-21S
• Thermal Protection: Auto
• Net Positive Suction Head Required: 2 ft of head
• For Media Type: Clear Water
• Best Efficiency Head: 60 ft
• Discharge Standard: NPT
• Installation: Submersible
• Full Load Current: 10 A
• Best Efficiency Flow: 13 gpm
• Power Source: Corded Electric
• Flow Rate - Maximum: 16.3 gpm
• Feet of Head - Maximum: 212 ft
• Product Type: Submersible Deep Well Pump
• Item: Submersible Pump
• HP: 1/2 hp
• Number of Wires: 2
• Amps: 10 A
• Rated Voltage: 115V AC
• Phase - Pumps: 1
• Nominal Flow Rate: 12 gpm
• Number of Stages: 5
• Discharge Head Material: Stainless Steel
• Shaft Material: 17-4 PH Stainless Steel

This Deep Well Submersible Pumps is well-suited for replacement, upgrade, and stock-room use.

Recommended for inventory replenishment and standardization and intended for professional buyers focused on durability and uptime.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
