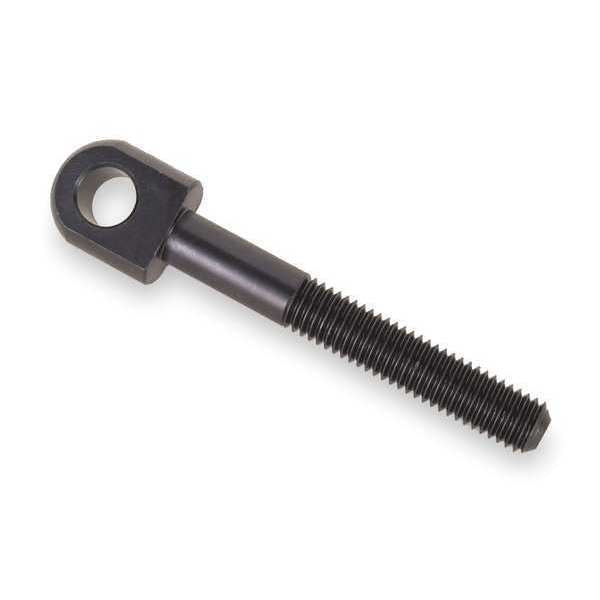

Swing Bolt, Steel, Black Oxide, 1/4"-20 Thrd Sz, 0.750 in Thrd Lg, 1-5/8 in Overall Lg

TE-CO — Rod Ends — Swing Bolt, Steel, Black Oxide, 1/4"-20 Thrd Sz, 0.750 in Thrd Lg, 1-5/8 in Overall Lg

A practical Rod Ends by TE-CO intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Steel
• Finish: Black Oxide
• System of Measurement: Inch
• Length: 1-5/8 in
• Manufacturer Part Number: 43001
• UPC: -

Product information

• Country of Origin: United States
• Manufacturer Part Number: 43001
• UPC: -

Dimensions

• Length from Ream Center: 1 1/2 in
• Screw Size: 1/4 in
• Shank Diameter: 1/4 in
• Thread Size: 1/4"-20
• Eye Inside Diameter: 0.250 in
• Eye Thickness: 5/16 in
• Eye Outside Diameter: 1/2 in
• Hole Center-to-End Length: 1 1/2 in
• Thread Length: 0.750 in
• Length: 1-5/8 in
• Thread Size (In.): 1/4-20
• Length from Ream Center (In.): 1-1/2
• Shank Length: 1.188 in

Details

• Material: Steel
• Finish: Black Oxide
• Thread Style: Partially Threaded
• Shank Type: Externally Threaded
• Yield Strength (PSI): 60,000
• Ream (In.): 1/4
• Features: Reamed Hole for Smooth Bearing
• Min. Tensile Strength (PSI): 78,000
• Type: Fixed Rod End
• Min. Tensile Strength: 78,000 psi
• Ream: 1/4 in
• Material - Machining: Steel
• Finish - Machining: Black Oxide
• Yield Strength: 60,000 psi
• Thread Direction: Right Hand
• Shoulder Style: Square Shoulder
• Manufacturer Location: Made in USA*
• Tensile Strength: 78,000 psi
• Pack Size: Small Pack
• Thread Type: UNC (Coarse)
• CAD Available: Yes
• Item: Swing Bolt
• System of Measurement: Inch
• Material Grade/Class: 12L14

This Rod Ends is selected for dependable day-to-day use.

Recommended for planned maintenance programs and a practical option for maintenance teams and procurement.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
