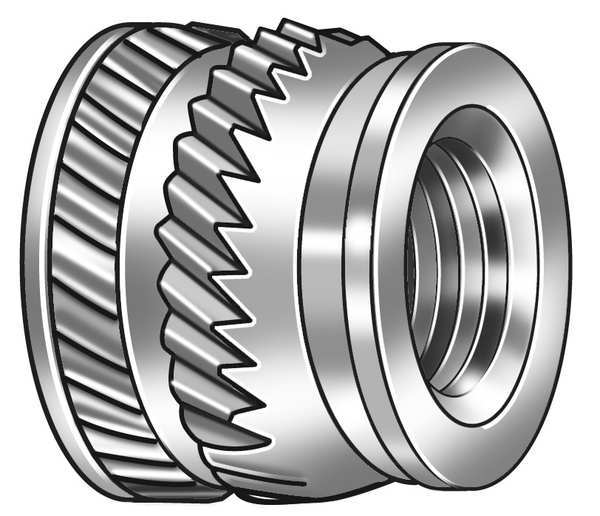

Ultrasonic Insert, 1/4"-20, 19/64 in L, 0.363 in Insert Dia., 0.349 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, 1/4"-20, 19/64 in L, 0.363 in Insert Dia., 0.349 in Tapered End Dia., Brass

CONTRACTOR SELECT Heat-Set Inserts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 19/64 in
• Manufacturer Part Number: TH-420-SV-PK50
• UPC: 00839137005738

Product information

• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: TH-420-SV-PK50
• UPC: 00839137005738

Dimensions

• Maximum Hole Diameter: 0.363 in
• Thread Size: 1/4"-20
• Insert Diameter: 0.363 in
• Overall Length: 19/64 in
• Drill Bit Size: 0.349 in
• Minimum Material Thickness: 3/16 in
• Tapered End Diameter: 0.349 in

Details

• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 1
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Series: E-Z Sonic
• Finish: Plain
• Features: Pull-Out Resistance
• Insert Type: Heat-Set Insert

This Heat-Set Inserts is intended for professional buyers focused on durability and uptime.

Recommended for production support and bench work and selected for dependable day-to-day use.

Highlights

• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
