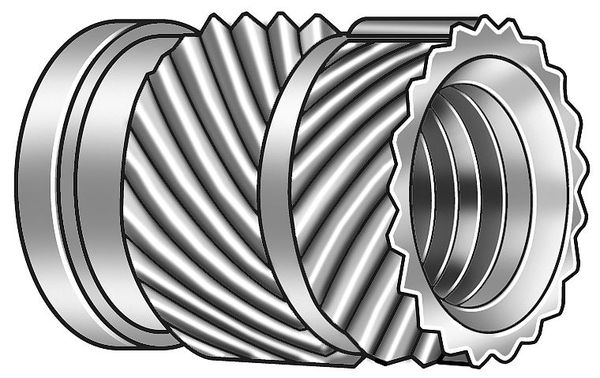

Ultrasonic Insert, 1/4"-28, 1/2 in L, 0.315 in Insert Dia., 0.315 in Tapered End Dia., Brass, 50 PK

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, 1/4"-28, 1/2 in L, 0.315 in Insert Dia., 0.315 in Tapered End Dia., Brass, 50 PK

This Heat-Set Inserts from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 1/2 in
• Manufacturer Part Number: HI-428-WH-PK50
• UPC: 00839137005929

Product information

• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: HI-428-WH-PK50
• UPC: 00839137005929

Dimensions

• Minimum Material Thickness: 1/8 in
• Tapered End Diameter: 0.315 in
• Maximum Hole Diameter: 0.315 in
• Thread Size: 1/4"-28
• Insert Diameter: 0.315 in
• Overall Length: 1/2 in
• Drill Bit Size: 8.00 mm

Details

• Insert Type: Heat-Set Insert
• Finish: Plain
• Series: E-Z Sonic
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Straight
• Thread Type: UNF
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Features: Pull-Out Resistance

This Heat-Set Inserts is chosen for predictable fit and professional handling.

Recommended for inventory replenishment and standardization and selected for dependable day-to-day use.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
