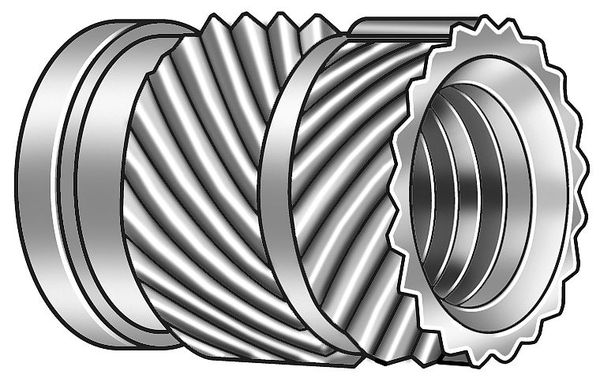

Ultrasonic Insert, 1/4"-28, 1/2 in L, 0.341 in Insert Dia., 0.312 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, 1/4"-28, 1/2 in L, 0.341 in Insert Dia., 0.312 in Tapered End Dia., Brass

CONTRACTOR SELECT Heat-Set Inserts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 1/2 in
• Manufacturer Part Number: HI-428-WH-PK500
• UPC: -

Product information

• UPC: -
• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: HI-428-WH-PK500

Dimensions

• Drill Bit Size: 8.00 mm
• Tapered End Diameter: 0.312 in
• Maximum Hole Diameter: 0.315 in
• Thread Size: 1/4"-28
• Insert Diameter: 0.341 in
• Overall Length: 1/2 in
• Minimum Material Thickness: 1/8 in

Details

• Material: Brass
• Shank Type: Straight
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Series: E-Z Sonic
• Insert Type: Heat-Set Insert
• Features: Pull-Out Resistance
• Finish: Plain
• Item: Ultrasonic Insert

This Heat-Set Inserts is chosen for predictable fit and professional handling.

Recommended for inventory replenishment and standardization and selected for dependable day-to-day use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
