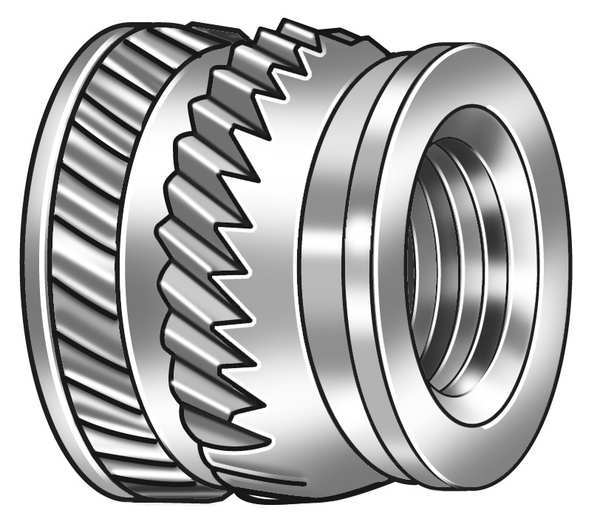

Ultrasonic Insert, 1/4"-28, 19/64 in L, 0.375 in Insert Dia., 0.354 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, 1/4"-28, 19/64 in L, 0.375 in Insert Dia., 0.354 in Tapered End Dia., Brass

A practical Heat-Set Inserts by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 19/64 in
• Manufacturer Part Number: TH-428-SV-PK500
• UPC: -

Product information

• UPC: -
• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: TH-428-SV-PK500

Dimensions

• Thread Size: 1/4"-28
• Insert Diameter: 0.375 in
• Overall Length: 19/64 in
• Drill Bit Size: 0.349 in
• Minimum Material Thickness: 3/16 in
• Tapered End Diameter: 0.354 in
• Maximum Hole Diameter: 0.363 in

Details

• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Insert Type: Heat-Set Insert
• Series: E-Z Sonic
• Features: Pull-Out Resistance
• Finish: Plain
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 1

This Heat-Set Inserts is designed to support reliable operation in demanding environments.

Recommended for maintenance and repair workflows and intended for professional buyers focused on durability and uptime.

Highlights

• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
