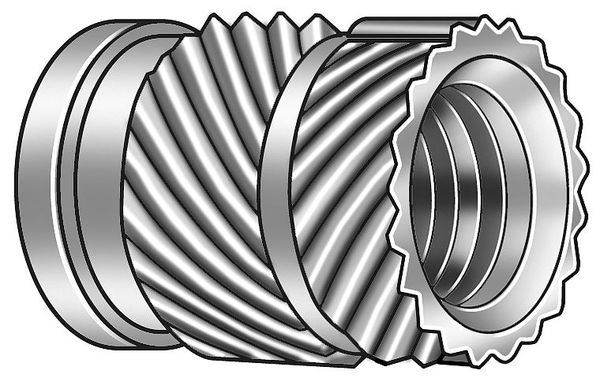

Ultrasonic Insert, #10-24, 3/8 in L, 0.252 in Insert Dia., 0.252 in Tapered End Dia., Brass, 50 PK

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #10-24, 3/8 in L, 0.252 in Insert Dia., 0.252 in Tapered End Dia., Brass, 50 PK

This Heat-Set Inserts from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 3/8 in
• Manufacturer Part Number: HI-124-WH-PK50
• UPC: -

Product information

• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: HI-124-WH-PK50
• UPC: -

Dimensions

• Maximum Hole Diameter: 0.252 in
• Thread Size: #10-24
• Insert Diameter: 0.252 in
• Overall Length: 3/8 in
• Minimum Material Thickness: 7/64 in
• Drill Bit Size: 6.30 mm
• Tapered End Diameter: 0.252 in

Details

• Finish: Plain
• Insert Type: Heat-Set Insert
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Straight
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Features: Pull-Out Resistance
• Series: E-Z Sonic

This Heat-Set Inserts is designed to support reliable operation in demanding environments.

Recommended for production support and bench work and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
