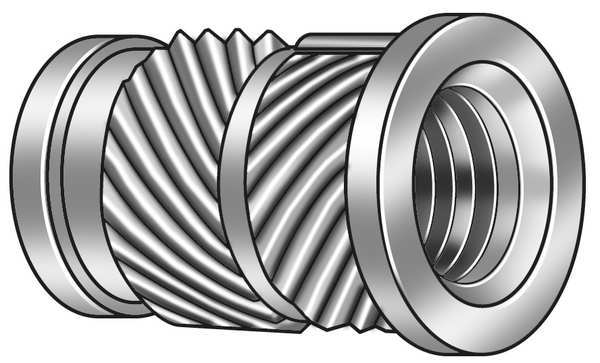

Ultrasonic Insert, #10-24, 3/8 in L, 0.312 in Insert Dia., 0.249 in Tapered End Dia., Brass, 500 PK

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #10-24, 3/8 in L, 0.312 in Insert Dia., 0.249 in Tapered End Dia., Brass, 500 PK

CONTRACTOR SELECT Heat-Set Inserts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 3/8 in
• Manufacturer Part Number: FL-124-HI-PK500
• UPC: -

Product information

• UPC: -
• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: FL-124-HI-PK500

Dimensions

• Insert Diameter: 0.312 in
• Overall Length: 3/8 in
• Drill Bit Size: 6.30 mm
• Minimum Material Thickness: 7/64 in
• Tapered End Diameter: 0.249 in
• Maximum Hole Diameter: 0.252 in
• Flange Diameter: 0.312 in
• Thread Size: #10-24

Details

• Shank Type: Straight
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flanged
• System of Measurement: Inch
• Thread Direction: Right Hand
• Series: E-Z Sonic
• Insert Type: Heat-Set Insert
• Features: Pull-Out Resistance
• Finish: Plain
• Item: Ultrasonic Insert
• Material: Brass

This Heat-Set Inserts is selected for dependable day-to-day use.

Recommended for production support and bench work and intended for professional buyers focused on durability and uptime.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
