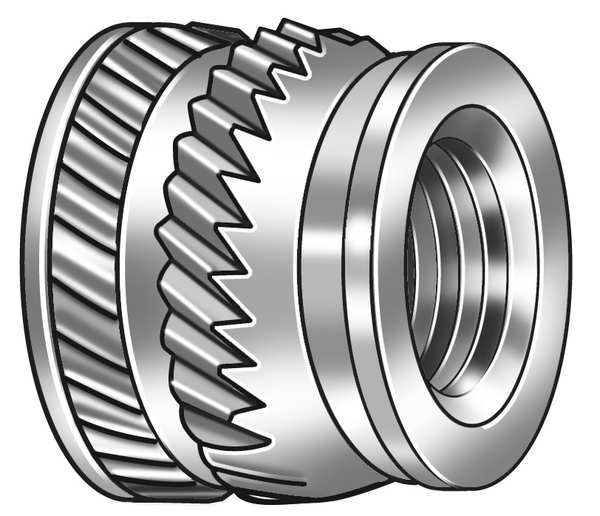

Ultrasonic Insert, #10-24, 7/32 in L, 0.296 in Insert Dia., 0.272 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #10-24, 7/32 in L, 0.296 in Insert Dia., 0.272 in Tapered End Dia., Brass

A practical Heat-Set Inserts by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 7/32 in
• Manufacturer Part Number: TH-124-SV-PK500
• UPC: -

Product information

• Manufacturer Part Number: TH-124-SV-PK500
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Minimum Material Thickness: 5/32 in
• Tapered End Diameter: 0.272 in
• Maximum Hole Diameter: 0.277 in
• Thread Size: #10-24
• Insert Diameter: 0.296 in
• Overall Length: 7/32 in
• Drill Bit Size: 0.267 in

Details

• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Series: E-Z Sonic
• Insert Type: Heat-Set Insert
• Finish: Plain
• Features: Pull-Out Resistance
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 1

This Heat-Set Inserts is designed to support reliable operation in demanding environments.

Recommended for facility operations and routine servicing and a practical option for maintenance teams and procurement.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
