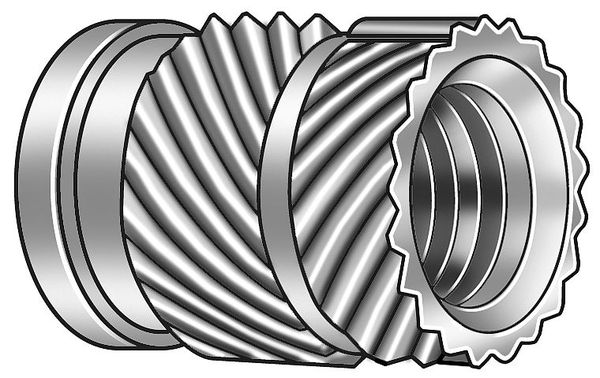

Ultrasonic Insert, #10-32, 3/8 in L, 0.278 in Insert Dia., 0.249 in Tapered End Dia., Brass, 500 PK

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #10-32, 3/8 in L, 0.278 in Insert Dia., 0.249 in Tapered End Dia., Brass, 500 PK

Designed for professional use, this CONTRACTOR SELECT Heat-Set Inserts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 3/8 in
• Manufacturer Part Number: HI-132-WH-PK500
• UPC: -

Product information

• Manufacturer Part Number: HI-132-WH-PK500
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Thread Size: #10-32
• Insert Diameter: 0.278 in
• Overall Length: 3/8 in
• Minimum Material Thickness: 7/64 in
• Drill Bit Size: 6.30 mm
• Tapered End Diameter: 0.249 in
• Maximum Hole Diameter: 0.252 in

Details

• Finish: Plain
• Series: E-Z Sonic
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Straight
• Thread Type: UNF
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Features: Pull-Out Resistance
• Insert Type: Heat-Set Insert

This Heat-Set Inserts is selected for dependable day-to-day use.

Recommended for inventory replenishment and standardization and chosen for predictable fit and professional handling.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
