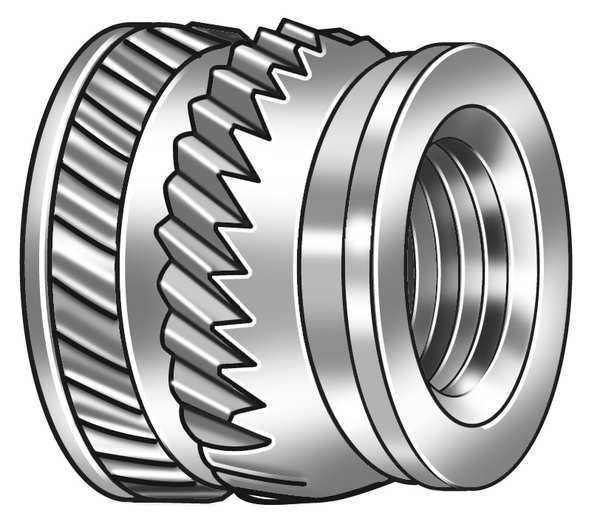

Ultrasonic Insert, #10-32, 7/32 in L, 0.277 in Insert Dia., 0.267 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #10-32, 7/32 in L, 0.277 in Insert Dia., 0.267 in Tapered End Dia., Brass

Designed for professional use, this CONTRACTOR SELECT Heat-Set Inserts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 7/32 in
• Manufacturer Part Number: TH-132-SV-PK100
• UPC: 00839137005721

Product information

• UPC: 00839137005721
• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: TH-132-SV-PK100

Dimensions

• Thread Size: #10-32
• Insert Diameter: 0.277 in
• Overall Length: 7/32 in
• Drill Bit Size: 0.267 in
• Minimum Material Thickness: 5/32 in
• Tapered End Diameter: 0.267 in
• Maximum Hole Diameter: 0.277 in

Details

• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Insert Type: Heat-Set Insert
• Features: Pull-Out Resistance
• Series: E-Z Sonic
• Finish: Plain
• Item: Ultrasonic Insert
• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 1
• Thread Type: UNF
• Compatible Material: Thermoplastics

This Heat-Set Inserts is chosen for predictable fit and professional handling.

Recommended for production support and bench work and designed to support reliable operation in demanding environments.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
