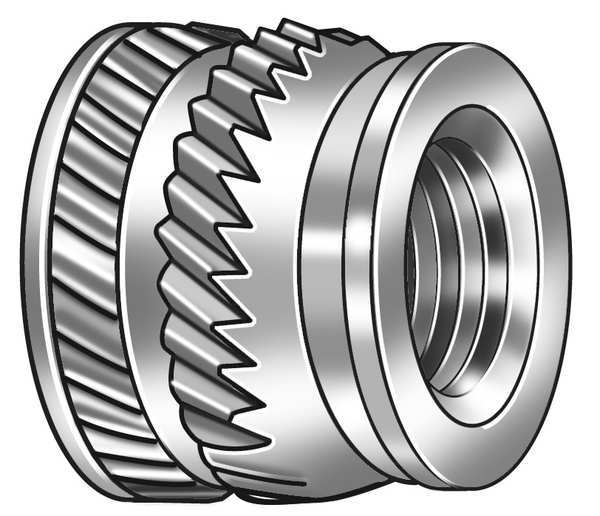

Ultrasonic Insert, #2-56, 7/64 in L, 0.136 in Insert Dia., 0.122 in Tapered End Dia., Brass

CONTRACTOR SELECT — Heat-Set Inserts — Ultrasonic Insert, #2-56, 7/64 in L, 0.136 in Insert Dia., 0.122 in Tapered End Dia., Brass

Designed for professional use, this CONTRACTOR SELECT Heat-Set Inserts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Brass
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 7/64 in
• Manufacturer Part Number: TH-002-SV-PK1000
• UPC: -

Product information

• Manufacturer Part Number: TH-002-SV-PK1000
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Drill Bit Size: 0.118 in
• Minimum Material Thickness: 5/64 in
• Tapered End Diameter: 0.122 in
• Maximum Hole Diameter: 0.123 in
• Thread Size: #2-56
• Insert Diameter: 0.136 in
• Overall Length: 7/64 in

Details

• Material: Brass
• Shank Type: Tapered
• Number of Vanes: 1
• Thread Type: UNC
• Compatible Material: Thermoplastics
• Installation Method: Ultrasonic Horn; Heat Driver
• Flange Style: Flush
• System of Measurement: Inch
• Thread Direction: Right Hand
• Finish: Plain
• Insert Type: Heat-Set Insert
• Features: Pull-Out Resistance
• Series: E-Z Sonic
• Item: Ultrasonic Insert

This Heat-Set Inserts is designed to support reliable operation in demanding environments.

Recommended for inventory replenishment and standardization and chosen for predictable fit and professional handling.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
